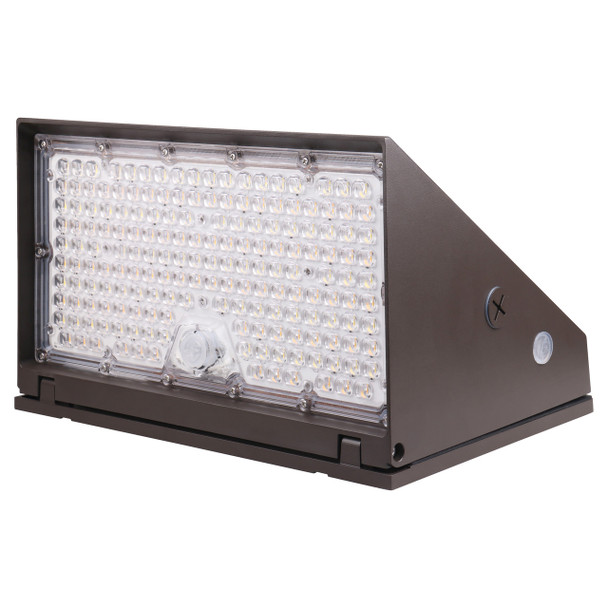

ESL Vision Full Cut Off Wall Pack, 80W-100W-120W, 3000K-4000K-5000K, Bronze, 120-277V

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision Full Cut Off Wall Pack, 80W-100W-120W, 3000K-4000K-5000K, Bronze, 120-277V

$171.55
  • SKU: ESL-ESL-FCWP-80120W-33050-BZ
  • MPN: ESL-FCWP-80120W-33050-BZ

Quick Overview

Selectable full cut-off LED wall pack with 80W/100W/120W and 3000K/4000K/5000K options, delivering up to 16,965 lumens at 141 lm/W. Includes built-in photocell and 0-10V dimming for perimeter and security lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Full Cutoff Wall Pack Series is a high-performance outdoor fixture designed for efficient perimeter and building-mounted illumination. This 3rd-generation model combines selectable wattage and CCT flexibility with strong optical control, making it a dependable choice across commercial and industrial sites.

Key Features and Benefits

  • Field-adjustable output with three wattage settings (80W/100W/120W) to match site lighting needs
  • Selectable 3000K/4000K/5000K color temperatures for warm-to-daylight visual comfort
  • Integrated on/off photocell supports automatic dusk-to-dawn operation
  • 0-10V dim-to-off capability enables energy savings and control integration
  • High efficacy performance up to 141 lm/W helps reduce operating costs
  • UL Listed and DLC Premium listed model with a 5-year warranty for long-term confidence

Specifications

  • Lumen Output: up to 16,965
  • Input Voltage: 120-277VAC
  • CRI: >80
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
  • Distribution: Type II
  • Rated Life (L70): 165,000 hours (TM-21 calculated)
  • Dimensions: 13.28" x 9.36" x 8.11"
  • Weight: 9.26 lbs
  • Default Setting: 120W, 5000K (photocell on)

Common Uses

Ideal for exterior walls of warehouses, schools, retail centers, parking perimeters, service entrances, and general security lighting zones where controlled cutoff distribution and reliable all-weather operation are required.
