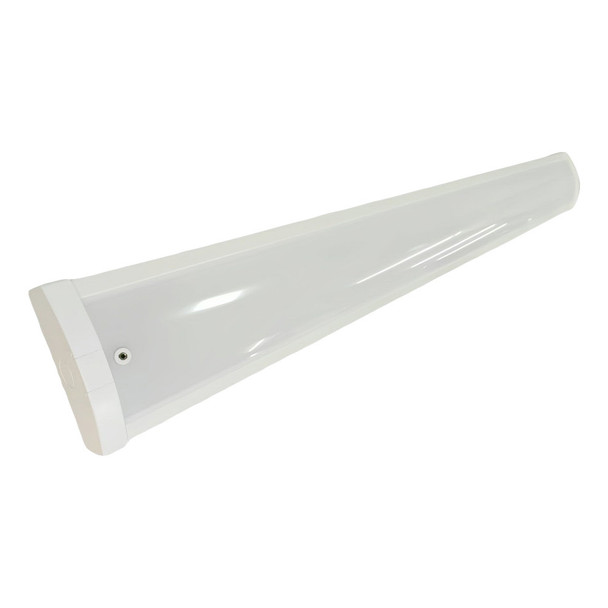

ESL Vision LED 810 Wrap Series, Contractor Series Selectable, 20W/30W/40W, 3500K/4000K/5000K/5700K/6500K, 120-277V, 0-10V Dimming

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision LED 810 Wrap Series, Contractor Series Selectable, 20W/30W/40W, 3500K/4000K/5000K/5700K/6500K, 120-277V, 0-10V Dimming

$115.65
  • SKU: ESL-ESL-CSS-810-4-2040W-D3565K
  • MPN: ESL-CSS-810-4-2040W-D3565K

Quick Overview

Low-profile 4' LED wrap fixture with selectable 20/30/40W and 3500K-6500K CCT options, delivering up to 5,200 lumens at 130 lm/W. Ideal for commercial interior applications with 120-277V input and 0-10V dimming.

ETL Listed
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left: 23
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision LED 810 Wrap Series is a versatile contractor-grade linear wrap fixture designed for efficient interior illumination. As part of ESL Vision’s selectable platform, this model combines multi-wattage and multi-CCT flexibility to simplify stocking and on-site configuration.

Key Features and Benefits

  • Field-selectable output with three wattage settings (20W, 30W, 40W) for adaptable light levels
  • 5-CCT selectability from warm to daylight tones (3500K to 6500K) to match varied spaces
  • High efficacy performance up to 130 lm/W helps reduce energy consumption
  • 0-10V dimming support enables smooth control integration with modern lighting systems
  • Low-profile wrap design provides clean, broad illumination for commercial interiors
  • Backed by a 5-year warranty and ETL listing for dependable operation and code confidence

Specifications

  • Lumen Output: 5200
  • Wattage: 20W|30W|40W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K|5700K|6500K
  • CRI: 80
  • Frequency (Hz): 50/60
  • Power Factor: 0.98
  • Max Ambient Temperature: 113°F (45°C)
  • Rated Life (70 Hours): 75000
  • Dimensions: 48" x 11.8" x 6.3"
  • Length shown in drawing: 47"
  • Weight: 22.05 lbs

Common Uses

Ideal for corridors, utility rooms, storage areas, back-of-house spaces, and general commercial indoor lighting where flexible output and color tuning are needed.
