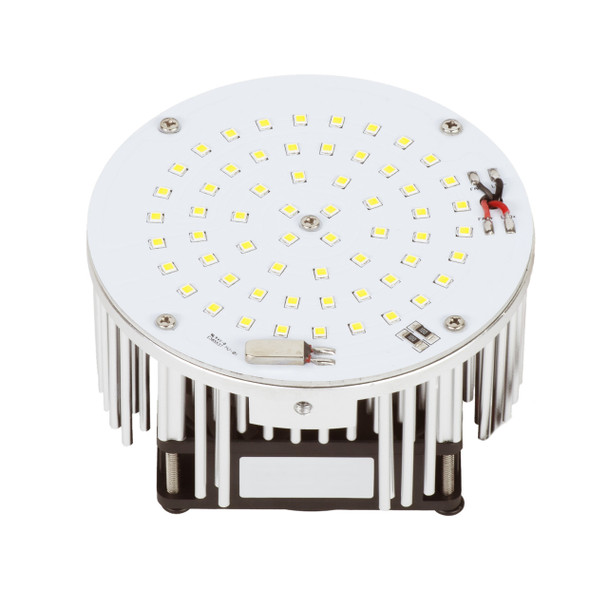

ESL Vision LED Amber MUR Series MultiUse Retrofit, 45W, Gen 3, 590NM Amber, 277-480V

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision LED Amber MUR Series MultiUse Retrofit, 45W, Gen 3, 590NM Amber, 277-480V

$327.20
  • SKU: ESL-ESL-MUR-45W-3-590NM-HV
  • MPN: ESL-MUR-45W-3-590NM-HV

Quick Overview

45W LED amber retrofit module for indoor/outdoor fixtures, delivering up to 3,473 lumens at 77 lm/W with 277-480V input, 0-10V dimming, and 100,000-hour L70 life for wildlife-sensitive and commercial sites.

UL Listed
DAMP RATED
WARRANTY 10 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision LED Amber MUR Series is a high-performance MultiUse Retrofit solution designed to upgrade existing luminaires with amber output for reduced light pollution and wildlife-friendly operation. This Gen 3 configuration combines robust thermal management, high-voltage compatibility, and long service life, making it a dependable choice across demanding indoor and outdoor environments.

Key Features and Benefits

  • Amber 590nm output helps minimize ecological impact in sensitive areas such as beachfronts and waterways.
  • Retrofit-ready design supports fast, cost-effective upgrades using existing fixtures.
  • Advanced thermal architecture with optimized pin-array heatsink, intelligent thermal control, and overheat shutdown for reliable operation.
  • 0-10V dimming with 12V AUX and dim-to-off capability enables flexible lighting control integration.
  • UL Listed construction and damp-location suitability support broad commercial deployment.
  • Backed by a 10-year manufacturer warranty for long-term confidence.

Specifications

  • Lumen Output: 3473
  • Wattage: 45W
  • Voltage: 277-480V
  • Input Frequency: 50/60
  • Color: 590NM Amber
  • CRI: >75
  • Efficacy: 77 lm/W
  • Rated Life (L70): 100000 hours
  • Operating Temperature: -40b0F to 176b0F (-40b0C to 80b0C)
  • Dimensions: 4.61" L x 4.61" W x 2.72" H
  • Weight: 0.77 lbs
  • Finish: White

Common Uses

Ideal for beach-front and waterfront properties, airports, parking lots, commercial buildings, retail sites, and food and beverage production facilities where amber lighting and retrofit efficiency are priorities.
