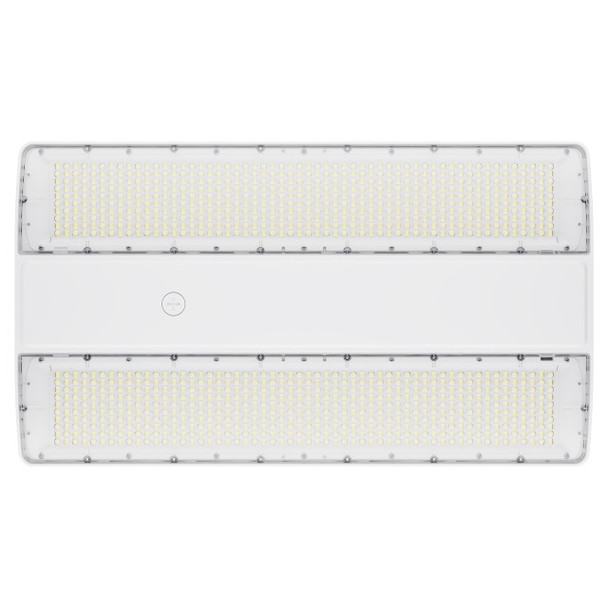

ESL Vision Linear High Bay, 255W-295W-320W, 4000K-5000K-5700K, 277-480V

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision Linear High Bay, 255W-295W-320W, 4000K-5000K-5700K, 277-480V

$220.25
  • SKU: ESL-ESL-LHB-255320W-54057-HV
  • MPN: ESL-LHB-255320W-54057-HV

Quick Overview

ESL Vision 5th-gen linear LED high bay with selectable 255W/295W/320W, 4000K/5000K/5700K, and beam angles up to 51,100 lumens. Built for demanding industrial and warehouse spaces with 0-10V dimming and IK10 durability.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
IK10
In Stock & Ready To Ship!
Current Stock:Only left: 7
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Linear High Bay Series delivers powerful, configurable illumination for high-ceiling commercial and industrial facilities. This 5th-generation ESL-LHB-255320W-54057-HV model combines multi-watt, multi-CCT, and multi-beam flexibility in one rugged fixture to simplify stocking and project design.

Key Features and Benefits

  • Field-selectable output with three wattage settings (255W/295W/320W) for precise light levels and energy control
  • Selectable CCT options (4000K/5000K/5700K) to match visual comfort and task requirements
  • Three optical distributions (90x90°, 45x100°, 65x95°) support open areas and aisle-focused layouts
  • 0-10V dim-to-off capability enables advanced lighting controls and additional energy savings
  • DLC Premium listed with UL certification support for rebate-focused and code-conscious projects
  • 5-year warranty and IK10 impact resistance for long-term reliability in demanding environments

Specifications

  • Lumen Output: up to 51,100
  • Efficacy: up to 170 lm/W
  • Input Voltage: 277-480 VAC
  • Input Frequency: 50/60 Hz
  • CRI: >80
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Rated Life (L70): 200,000 hours (TM-21 calculated)
  • Dimensions: 22.05" x 12.40" x 1.89"
  • Weight: 8.82 lbs
  • Surge Protection: 6kV

Common Uses

Ideal for warehouses, distribution centers, manufacturing plants, gymnasiums, and other high-mount applications requiring high output, optical flexibility, and dependable performance in damp locations.

RESOURCES AND DOWNLOADS

ESL Vision Linear High Bay Spec Sheet
