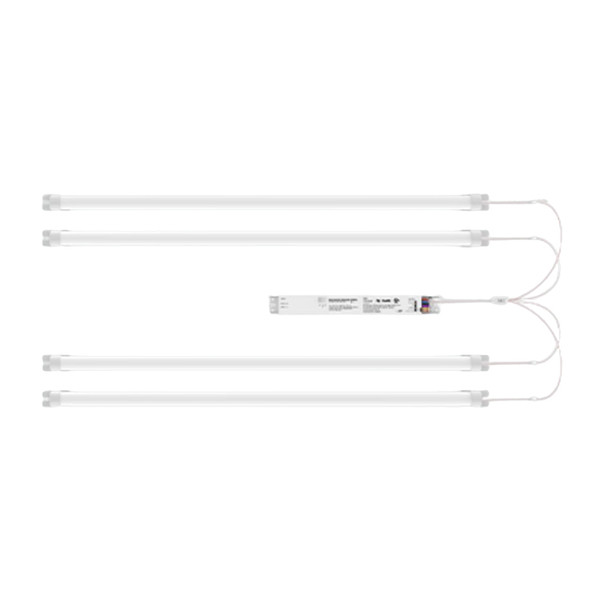

Universal Light Bar Kit, 3', 3500K|5000K, 120-277V, Four Bars

By Green Creative

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Universal Light Bar Kit, 3', 3500K|5000K, 120-277V, Four Bars

$87.70
  • SKU: GC-30LB/3F/8/U/A4
  • MPN: 30LB/3F/8/U/A4

Quick Overview

3' universal LED light bar retrofit kit with four bars, selectable 3500K/5000K CCT, 120-277V input, 0-10V dimming, up to 6500 lumens, and up to 163 lm/W for efficient enclosed-fixture and damp-location upgrades.

ETL Listed
DLC Standard
DAMP RATED
WARRANTY 5|10 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The GREENCREATIVE Universal Light Bar Kit is a flexible linear retrofit solution designed to modernize existing fluorescent fixtures with high-efficiency LED performance. As part of the brand’s retrofit lineup, it combines fast installation features with selectable output and control-ready capability for commercial spaces. This 3' four-bar configuration supports broad voltage compatibility and dependable long-life operation.

Key Features and Benefits

  • Field-selectable lumen settings let you tune light levels for energy savings or higher output as needed.
  • Quick-connect bars with magnetic mounting points help speed installation and reduce labor time.
  • 0-10V dimming (down to 10%) supports modern lighting controls and improved space flexibility.
  • Built for enclosed fixtures and damp locations, making it suitable for demanding retrofit environments.
  • High efficacy performance up to 163 lm/W helps lower operating costs.
  • DLC listed models available with a 5-year limited warranty.

Specifications

  • Nominal Length: 3'
  • Light Bar Quantity: 4
  • Input Voltage: 120-277V
  • CCT Options: 3500K|5000K
  • Driver Wattage (L/M/H): 32W|36W|40W
  • Bare Light Bar Lumens (L/M/H): 5100|5800|6400 (3500K) / 5200|5900|6500 (5000K)
  • Inside Fixture Lumens (L/M/H): 3920|4460|4920 (3500K) / 4000|4540|5000 (5000K)
  • Efficacy (L/M/H): up to 163 lm/W
  • Ambient Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Rated Life (L70): up to 100,000 hours
  • Housing: Plastic
  • Lens: Frosted Polycarbonate

Common Uses

Ideal for commercial and industrial fluorescent-to-LED retrofits in strip fixtures, utility areas, back-of-house spaces, storage rooms, and other enclosed or damp-location applications requiring efficient linear illumination.

RESOURCES AND DOWNLOADS

Universal Light Bar Kit Spec Sheet
