Name: VAPOR-TIGHT Jar, Universal Adj. Arm, Alum. W/ Pc Lens, 15/20/30W 3CCT
Brand: Westgate Manufacturing
SKU: WM-VTA-15-30W-MCTP
Price: 109.85 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

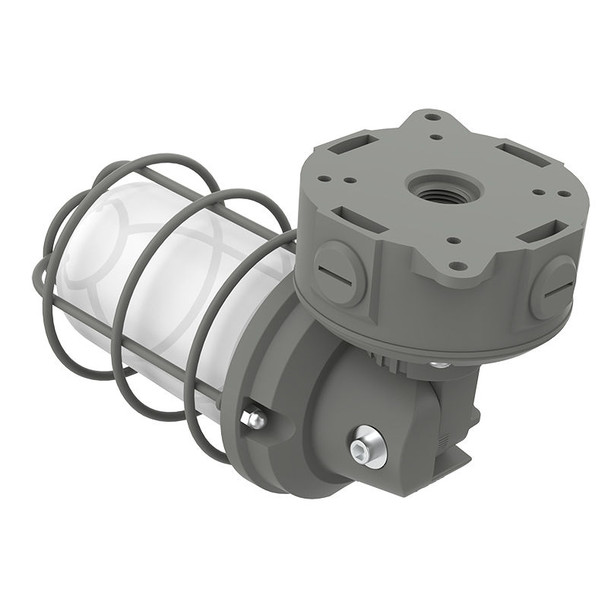

Illuminate Industrial and Commercial Spaces with High-Output Dual-Selectable Vapor-Tight Fixture

Enhance the lighting in your industrial and commercial environments with the High-Output Dual-Selectable Vapor-Tight Fixture with Adjustable Angle by Westgate Manufacturing. Designed for durability and flexibility, this fixture offers powerful performance and adaptability to meet varying lighting needs.

Key Features and Benefits

Adjustable Beam Angle: Customize the lighting direction with an adjustable beam angle ranging from 90° to 180°.
Multi-Color Temperature Selection: Choose from three color temperatures (3000K, 4000K, 5000K) to achieve the ideal lighting ambiance.
High Efficacy: Operating at 110 LM/W, this fixture ensures high energy efficiency, making it cost-effective.
Long Lifespan: With a lifespan of up to 70,000 hours, this fixture reduces the frequency of replacements.
Robust Construction: Built with durable aluminum alloy and a PC lens, the fixture is designed to withstand industrial environments.
IP66 Rated: Suitable for wet locations, enhancing its versatility in various applications.
7-Year Warranty: Experience extended reliability and peace of mind with a comprehensive 7-year warranty.

Technical Specifications

Power: Selectable between 15W, 20W, and 30W
Voltage: 120-277V AC, 60Hz
Total Lumens: Up to 3300LM
CRI: Greater than 90
Operating Temperature: -40°F to 113°F
Efficacy: 110 LM/W
Dimensions: 16”(H) x 6.18”(W) x 5.71”(D)
Color Temperatures: 3000K, 4000K, 5000K
Warranty: 7-year

Common Uses

This fixture is ideal for a variety of applications including industrial facilities, food processing plants, commercial kitchens, car wash facilities, cold storage facilities, retail spaces, and parking garages, ensuring optimal lighting performance across different environments.

RESOURCES AND DOWNLOADS

High-Output Dual-Selectable Vapor-Tight Fixture Spec Sheet

Westgate Resources and Downloads

Installation Instructions

Details

Beam Angle:	360°
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|DLC Standard\|UL Listed
Country of Origin:	CHINA
Dimming Type:	Non-Dimming
Efficacy:	110LM/W
Housing Material:	Polycarbonate
IP Rating:	IP65
Item Height (Inch):	12.5
Item Length (Inch):	4.75
Item Weight (LBS):	2.9
Item Width (Inch):	4.75
L70 Expected Life (hours):	18000Hours
Lumen Output:	3300\|1650\|2200
Operating Temperature:	-15°C to 45℃ (-5°F to 113°F)
Power Factor:	＞0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	＜20%
Voltage:	120V
Wattage:	15W\|20W\|30W
