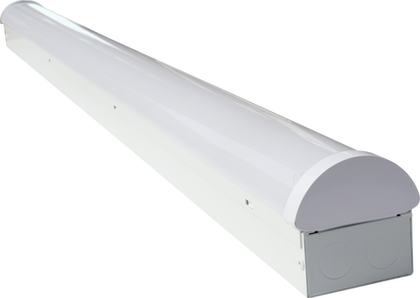

Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish

By Honya Lighting
Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish
Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish
Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish
Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish
Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish
Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Honya Lighting LED Strip Light and Stairwell Fixture, 4', 40/60/80W, 5200/7800/10400lm, 120-347V, 3000/4000/5000K Selectable, 3500/5000/6500K Selectable, 0-10V Dimming, White Finish

$55.00
  • SKU: HY-HY-4FT-LS100-80WHV-3W3CCT
  • MPN: HY-4FT-LS100-80WHV-3W3CCT

Quick Overview

4' selectable-output LED strip/stairwell fixture with 40/60/80W and 3CCT tuning, delivering up to 10,400 lumens on 120-347V. Features 0-10V dimming, 120° beam, damp-location rating, and linkable design for commercial and industrial spaces.

ETL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Honya HY-LS100 series LED Strip Light and Stairwell Fixture is a versatile linear solution designed for modern commercial and industrial lighting upgrades. This 4' high-output configuration combines field-selectable wattage and CCT in one fixture, helping contractors and facility teams simplify inventory while matching site-specific lighting needs. Its low-profile construction and uniform optical design make it a practical choice across utility and occupied spaces.

Key Features and Benefits

  • Triple-output power selection (40W/60W/80W) enables on-site light level tuning
  • Dual 3CCT selectable platform supports flexible color appearance preferences
  • 0-10V dimming compatibility supports energy-saving controls integration
  • Damp-location suitability expands use in utility and semi-conditioned environments
  • Linkable fixture design with included wire harness streamlines continuous-row installations
  • 5-year warranty for dependable long-term performance

Specifications

  • Lumen Output: 5200/7800/10400
  • Voltage: 120-347V
  • CRI: 80+
  • Beam Angle: 120°
  • Power Factor: >0.9
  • Rated Life (L70): 50000+
  • Operating Temperature: -20°C to +40°C (-4°F to +104°F)
  • Housing/Heat Sink: Aluminum
  • Lens Material: PMMA
  • Finish: White

Common Uses

Ideal for warehouses, stairwells, retail back-of-house areas, garages, schools, government facilities, and grocery environments where adaptable output, reliable performance, and clean linear illumination are required.

RESOURCES AND DOWNLOADS

Honya Lighting LED Strip Light and Stairwell Fixture Spec Sheet
