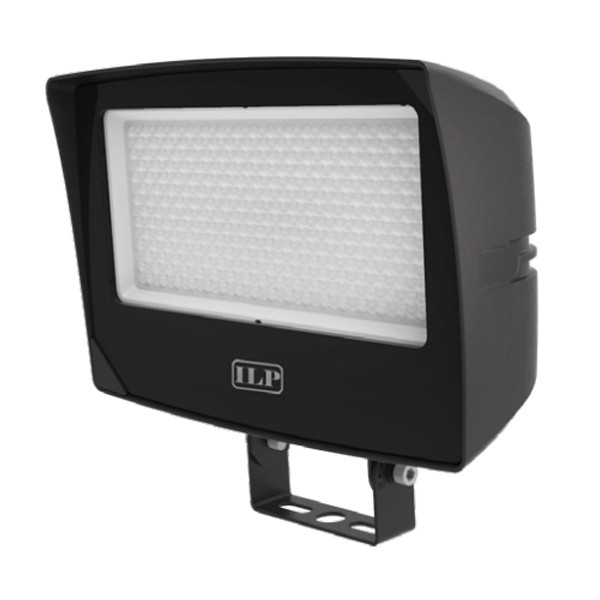

ILP Viewpoint Flood Medium 2.0, 7L/9L/11L, 120-277V, CCT Selectable, Distribution Selectable, Trunnion/Yoke Mount, Bronze

By Industrial Lighting Products
ILP Viewpoint Flood Medium 2.0, 7L/9L/11L, 120-277V, CCT Selectable, Distribution Selectable, Trunnion/Yoke Mount, Bronze

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP Viewpoint Flood Medium 2.0, 7L/9L/11L, 120-277V, CCT Selectable, Distribution Selectable, Trunnion/Yoke Mount, Bronze

$144.65
  • SKU: ILP-VFM2-7L/9L/11L-U-CCTS-DS-TRN-BRZ
  • MPN: VFM2-7L/9L/11L-U-CCTS-DS-TRN-BRZ

Quick Overview

Medium LED flood light with selectable 7,000/9,000/11,000 lumen packages, 3000K/4000K/5000K CCT, and 5H5V/6H6V/7H6V distributions. IP65 die-cast aluminum housing, 0-10V dimming, and wet-location ETL listing for outdoor site lighting.

ETL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Viewpoint Floods 2.0 VFM2 is a versatile medium-size architectural flood fixture built for demanding exterior lighting projects. As part of ILP’s scalable VF2.0 family, it combines field-selectable lumen output, CCT, and distribution in one rugged platform to simplify specification and installation.

Key Features and Benefits

  • Three selectable lumen settings in one fixture reduce SKU complexity and allow on-site light level tuning.
  • Selectable 3000K, 4000K, and 5000K CCT supports visual comfort and application flexibility.
  • Selectable 5H5V, 6H6V, and 7H6V optics enable beam pattern adjustment without changing fixtures.
  • Durable die-cast aluminum housing with bronze powder coat and tempered glass lens stands up to harsh weather.
  • ETL Listed for wet locations and LM-79/LM-80 tested for verified performance and reliability.
  • Standard 5-year warranty with optional 10-year coverage for long-term project confidence.

Specifications

  • Lumen Output: 7335|9480|11625
  • Wattage: 45W|60W|75W
  • Voltage: 120-277V
  • Color Temperature: 3000K|4000K|5000K
  • CRI: 80
  • Dimming Type: 0-10V (10%-100%)
  • Frequency (Hz): 50/60
  • Ingress Protection: IP65
  • Operating Temperature: -40°C to 40°C
  • Mounting: Trunnion/Yoke (TRN)
  • Cord: 18" 5-wire SO cord
  • EPA: 0.17

Common Uses

Ideal for landscape lighting, wall wash, signage, flag poles, spot and flood applications, and elevation illumination in commercial and industrial outdoor environments.

RESOURCES AND DOWNLOADS

ILP Viewpoint Flood Medium 2.0 Spec Sheet
