Description

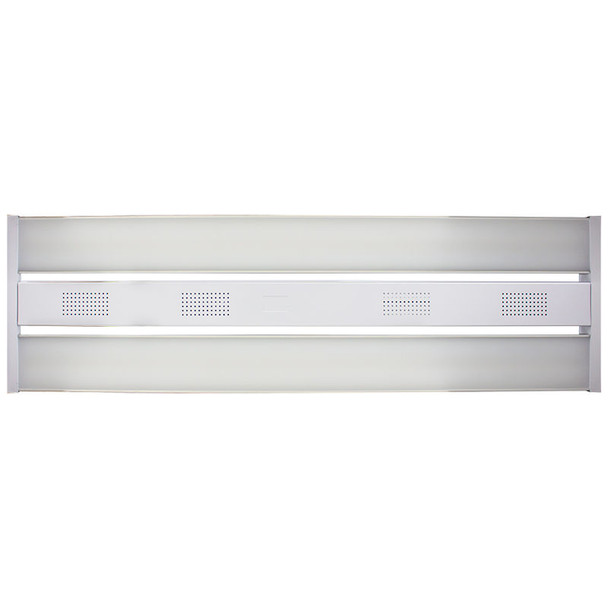

This industrial lighting fixture is part of the LLHB4 series, known for its high efficiency and adaptability. It features selectable multi-power settings, making it ideal for various applications.

Key Features and Benefits

500W power with multi-power settings: 250W, 400W, and 500W
Color temperature of 5000K for bright, natural light
Efficacy of 136 LPW
Total lumen output of up to 68000LM
0-10V dimmable for adjustable lighting
Surge protector and steel housing for durability
Suitable for damp locations
Operating temperature range: -4°F to 131°F
Rated lifespan of 50,000 hours
High CRI of >80 for accurate color rendering
Sensor ready with pre-installed single-pin audio jack socket
5-year warranty

Specifications

Voltage: 120-277VAC, 50-60 Hz
Wattage: 500W
Color Temperature: 5000K
Total Lumens: 68000LM
CRI: >80
Beam Angle: Wide

Common Uses

Ideal for manufacturing, warehousing, and large indoor spaces with mounting heights from 10ft. to 40ft. Can replace conventional HID and fluorescent systems.

RESOURCES AND DOWNLOADS

Industrial Lighting Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	H100.2 V101.8°
CRI:	80
Color Temperature:	5000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	125LM/W
Finish / Color:	White
Housing Material:	Steel
IP Rating:	IP20
Item Height (Inch):	1.97
Item Length (Inch):	46.65
Item Weight (LBS):	10.5
Item Width (Inch):	24
L70 Expected Life (hours):	50,000hr
Lumen Output:	68000\|31250\|50000\|62500
Operating Temperature:	-30-+40
Power Factor:	>0.92
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable Lumen Output\|Sensor Included
THD:	<19
Voltage:	120-277V
Wattage:	250W\|400W\|500W
