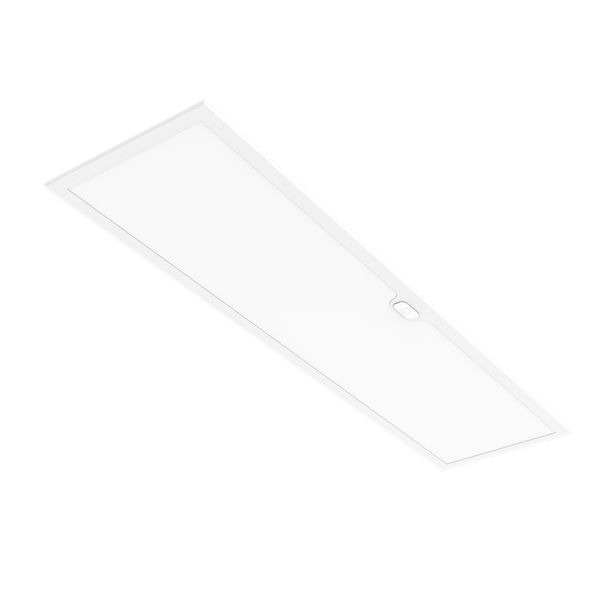

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 3500lm, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

By Industrial Lighting Products
Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 3500lm, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 3500lm, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

$70.80
  • SKU: ILP-VPAN14-35L-U-CCTS-G2
  • MPN: VPAN14-35L-U-CCTS-G2

Quick Overview

1x4 back-lit LED flat panel with selectable 2700K-5000K CCT, 3500 lm package, 0-10V dimming, and Type IC/damp location rating for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select series delivers high-performance back-lit flat panel lighting for modern commercial interiors. Built for visual comfort and long service life, this Gen 2 1x4 model combines selectable CCT flexibility with efficient, low-glare illumination. It is a dependable choice in ILP’s panel lineup for projects that need adaptable light quality and straightforward installation.

Key Features and Benefits

  • Selectable white light output (2700K through 5000K) supports changing space needs from warm to cool illumination.
  • Back-lit optical design with frosted PMMA lens and micro-optics helps reduce glare while maintaining smooth, uniform light.
  • 0-10V dimming capability (10%-100%) enables energy-saving control strategies in commercial applications.
  • Durable die-formed steel housing with post-paint finish provides rigidity and long-term reliability.
  • Certified for ETL safety compliance, damp-location use, and Type IC insulation contact for broader code-friendly deployment.
  • Backed by a 5-year limited warranty, with optional 10-year coverage available.

Specifications

  • Lumen Package: 3500 lm (nominal package)
  • Input Voltage: 120-277V
  • Color Temperatures: 2700K/3000K/3500K/4000K/5000K selectable
  • CRI: >80
  • Efficacy: up to 161 lm/W (series maximum)
  • Rated Life: L70 >100,000 hours
  • Power Factor: >0.90
  • Dimming: 0-10V standard
  • Ambient Operating Range: -4°F to 104°F
  • Fixture Size: 1x4
  • Lens Material: PMMA frosted acrylic
  • Mounting Compatibility: recessed grid, flange, surface, suspended, skylight, skylight tilt

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, commercial kitchens, and residential utility spaces requiring efficient, comfortable general lighting.

RESOURCES AND DOWNLOADS

Industrial Lighting Products VPAN Select Back-Lit Flat Panel Spec Sheet
