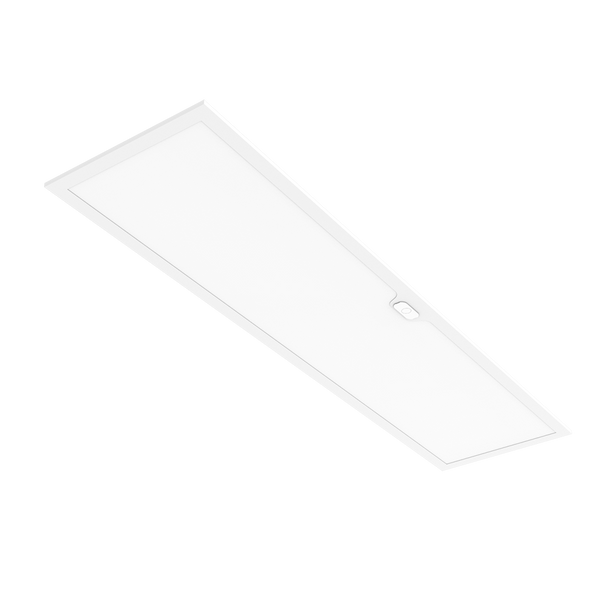

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 3500lm, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2, Controls Ready

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 3500lm, 120-277V, CCT Selectable 2700K/3000K/3500K/4000K/5000K, Gen 2, Controls Ready

$70.80
  • SKU: ILP-VPAN14-35L-U-CCTS-G2 CR
  • MPN: VPAN14-35L-U-CCTS-G2 CR

Quick Overview

1x4 back-lit LED flat panel with selectable CCT, 3500 lm package, and 0-10V dimming for offices, schools, healthcare, and retail spaces. IC rated, damp location listed, and built for long-life, low-glare performance.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select series delivers versatile, high-performance back-lit panel lighting for modern commercial interiors. This 1x4 Gen 2 configuration combines selectable white light, efficient output, and controls-ready flexibility, making it a dependable choice across ILP’s architectural panel lineup.

Key Features and Benefits

  • Selectable CCT tuning (2700K through 5000K) supports one-fixture adaptability across varied room tasks and visual preferences.
  • Low-glare PMMA frosted lens with micro-optic design promotes smooth, uniform illumination and improved visual comfort.
  • Controls-ready construction simplifies future sensor and smart control integration for energy-saving upgrades.
  • ETL Listed for U.S. and Canada, Title 24 compliant with sensor option, and backed by a 5-year standard warranty (10-year optional).

Specifications

  • Lumen Output: 3310-3621
  • Wattage: 24.3W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80+
  • Dimming: 0-10V (10%-100%)
  • Power Factor: >0.90
  • Efficacy: 142-154 lm/W
  • Rated Life (L70): >100,000 hours
  • Ambient Operating Range: -4°F to 104°F
  • Housing: Die-formed steel, post-paint white finish
  • Lens: Frosted PMMA acrylic
  • Size: 47.8" x 11.9" x 1.3"

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, and commercial kitchens where efficient, low-glare general lighting is required.
