Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 2500lm/2800lm/3500lm/4200lm/4900lm Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

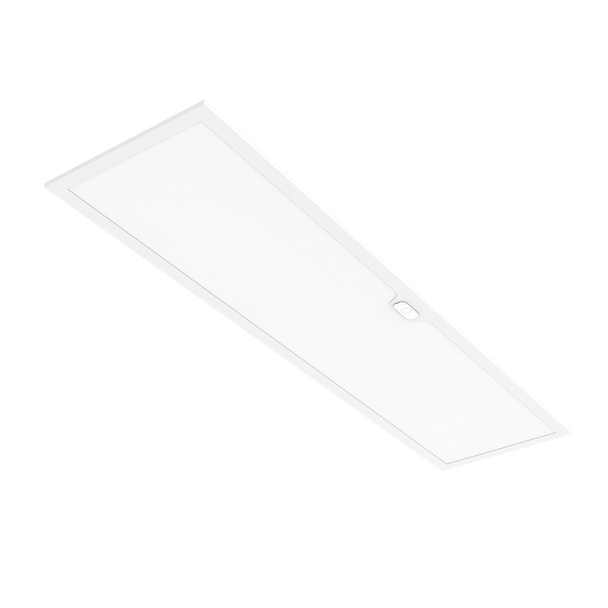

Industrial Lighting Products VPAN Select Back-Lit Flat Panel, 1x4, 2500lm/2800lm/3500lm/4200lm/4900lm Selectable, 120-277V, 2700K/3000K/3500K/4000K/5000K Selectable, Gen 2

$63.10
  • SKU: ILP-VPAN14-25L/49L-U-CCTS-G2
  • MPN: VPAN14-25L/49L-U-CCTS-G2

Quick Overview

1x4 back-lit LED flat panel with selectable lumen output (2500-4900 lm) and CCT (2700K-5000K), 0-10V dimming, IC rating, and damp-location suitability for offices, schools, healthcare, and retail spaces.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select series is a versatile back-lit flat panel family designed for modern commercial interiors that need flexible light levels and color tuning. This 1x4 Gen 2 configuration combines field-selectable output, high efficacy, and low-glare optics to simplify specification and reduce SKU complexity across projects.

Key Features and Benefits

  • Five selectable lumen settings in one fixture help match light levels to changing space needs.
  • Selectable 2700K to 5000K CCT supports warm-to-cool visual environments from hospitality to task-focused areas.
  • High-transmission PMMA frosted lens with micro-optic design delivers smooth, comfortable illumination with reduced glare.
  • 0-10V dimming capability (100%-10%) enables energy-saving control integration.
  • ETL Listed, Title 24 compliant with sensor option, damp-location suitable, and Type IC rated for insulation contact.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Voltage: 120-277V
  • Lumen Output: 2415-5080 (model and CCT dependent)
  • Wattage: 17.5W-33.6W
  • CRI: >80
  • Efficacy: up to 161 lm/W
  • Rated Life (L70): >100,000 hours
  • Power Factor: >0.90
  • Mounting: Recessed grid, flange, surface, suspended, skylight, skylight tilt
  • Ambient Temperature: -4b0F to 104b0F
  • Housing: Die-formed steel with white post-paint finish
  • Lens: Frosted PMMA acrylic

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, and residential or mixed-use interior applications requiring uniform general lighting.
