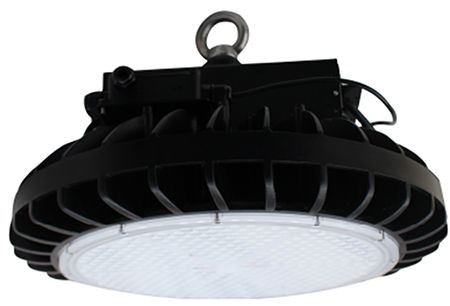

LED Highbay, Aluminum Housing 16", 90° Optical Pc Lens, 300W, 36000 Lm, 277~480VAC, IP65, 5000K

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LED Highbay, Aluminum Housing 16", 90° Optical Pc Lens, 300W, 36000 Lm, 277~480VAC, IP65, 5000K

$754.15
MSRP: $851.45
You save $ 97.30 (11%)
  • SKU: WM-UHB-300-CW-480V
  • UPC: 845060047721
  • MPN: UHB-300-CW-480V

Quick Overview

LED Highbay, Aluminum Housing 16", 90° Optical Pc Lens, 300W, 36000 Lm, 277~480VAC, IP65, 5000K (wattage: 300W; lumens: 36000LM; CCT: 5000K; voltage: 480V; finish: Black)

IP65
Availability: 1 business day
Out of stock
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

High-Efficiency 300W LED High Bay Fixture

The 300W LED High Bay Fixture is an advanced lighting solution, perfect for large area illumination. It boasts a selectable color temperature of 4000K/5000K, providing adjustable lumen outputs as high as 37,000LM, ensuring outstanding brightness and flexibility.

Key Features and Benefits

  • Selectable color temperature: 4000K or 5000K for versatile lighting options.
  • Adjustable lumen outputs: Delivers up to 37,000 lumens for powerful illumination.
  • High efficacy: Achieves 125 lumens per watt for efficient energy usage.
  • Longevity: Designed to last 50,000 hours, ensuring long-term performance.
  • IP65 rating: Suitable for wet locations, offering robust weather resistance.
  • UL and DLC certified: Meets high safety and performance standards.

Technical Specifications

  • Voltage: 480V 50/60Hz
  • Wattage: 300W
  • Power factor: Greater than 0.9 for superior energy efficiency
  • LED type/brand: High-quality Lumileds LEDs
  • Color rendering index: Greater than 82 for accurate color representation
  • Beam angle: 90° for focused light distribution
  • Material: Durable ACD12 aluminum heat sink with SUS black plate
  • Finish: Outdoor powder coat (Black) for enhanced durability
  • Operating temperature: -4°F to 104°F, suitable for various environments
  • Lens: Prismatic PC lens cover
  • Human body induction function (adapter sold separately)

Common Applications

Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas, this fixture ensures optimum visibility and safety.

Resources and Downloads

LED High Bay Fixture Spec Sheet

Westgate Resources and Downloads
