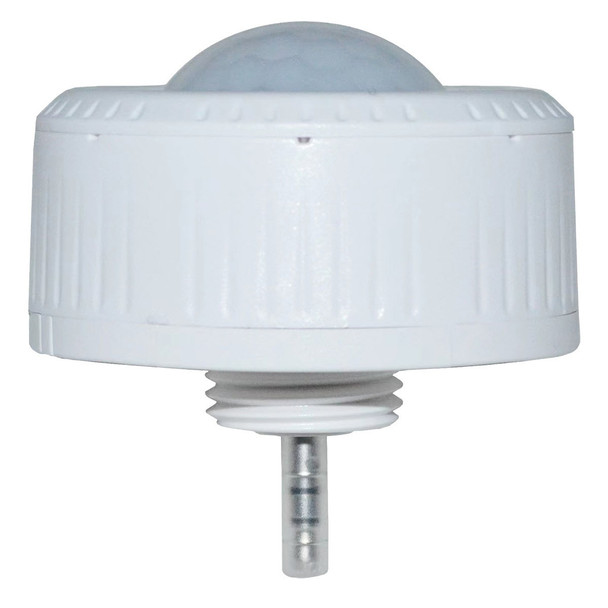

LEDone LOC-ANT-6-4T Bi-level PIR Motion Sensor, 12-24V DC, 0-10V Dimming Control, IP65

By LEDone Distribution

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LEDone LOC-ANT-6-4T Bi-level PIR Motion Sensor, 12-24V DC, 0-10V Dimming Control, IP65

$38.90
  • SKU: LOD-LOC-ANT-6-4T
  • MPN: LOC-ANT-6-4T

Quick Overview

Bi-level PIR motion sensor for outdoor LED fixtures with 0-10V control, adjustable detection (20%-100%), daylight threshold settings, and IP65 wet-location protection for reliable energy-saving lighting automation.

WET RATED
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The LEDone LOC-ANT-6-4T is a bi-level PIR motion sensor designed to add intelligent control to outdoor LED luminaires. As part of LEDone’s control lineup, it enables motion- and daylight-responsive dimming to improve energy efficiency and site safety. Its compact form and remote programmability make it a practical upgrade for commercial and industrial lighting systems.

Key Features and Benefits

  • Bi-level motion logic supports full output on occupancy and dimmed standby operation for reduced energy use.
  • Flexible setup with adjustable sensitivity, hold times, and daylight thresholds to match site conditions.
  • Compatible with 0-10V dimmable LED drivers and dimming ballasts for broad fixture integration.
  • Built for demanding environments with wet-location suitability and cold-weather operation.
  • Remote-control programmability streamlines commissioning and field adjustments.

Specifications

  • Power Supply: 12-24V DC, >30mA
  • Dim Control Output: 0-10V, max 25mA sinking current
  • Detection Radius: 20%/50%/75%/100% (1-8m)
  • Mounting Height: Max 40' (12m)
  • Remote Range: 50' (15m) indoor, no backlight
  • Time Setting: 10s/1min/5min/10min/15min/20min/30min/60min
  • Light Control: 24H/10Lux/30Lux/50Lux
  • IP Rating: IP65
  • Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Common Uses

Ideal for outdoor wall packs, canopy lights, area fixtures, and other commercial LED luminaires requiring occupancy-based dimming and daylight harvesting in parking areas, walkways, building perimeters, and industrial sites.
