Description

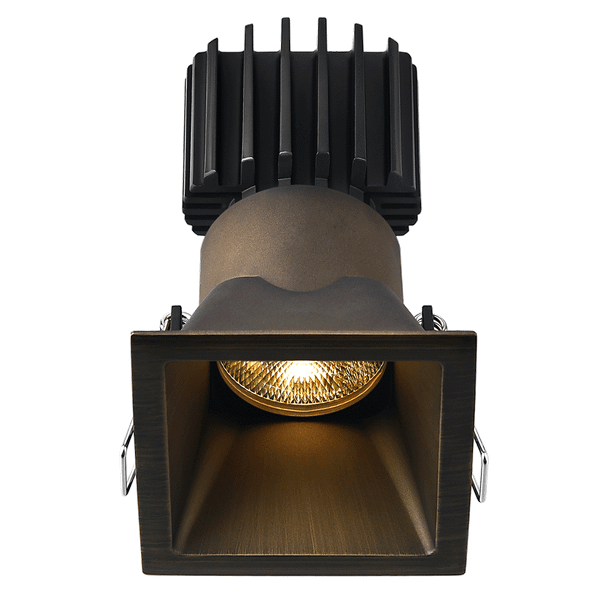

The Lotus L3F-SDT Tangra series is a premium 3" fixed square deep regressed thin-trim downlight engineered for clean architectural ceilings and visual comfort. Built with a solid cast aluminum body and advanced optics, it delivers high-quality illumination with flexible driver and beam options for residential and commercial projects.

Key Features and Benefits

Deep regressed, minimal-glare optical design for refined ambient and general lighting
Selectable 11W/15W performance with output up to 1600 lumens for adaptable light levels
High color quality LED platform with CRI95 option at 3000K for accurate color rendering
Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54
Long-term reliability with 70% lumen maintenance at 50,000 hours and Lotus lifetime line support plus 5-year warranty

Specifications

Lumen Output: 1600
Wattage: 11W|15W
Voltage: 120V|120-347V
Color Temperature: 3000K
CRI: 95
Dimming Type: 0-10V|Phase
Beam Angle: 20°|24°|36°|50°
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Input: 20-40V DC, max 350mA constant current
Max Ambient Temperature: 45°C
IP Rating: IP54
Cutout: 2 5/8" square

Common Uses

Ideal for upscale residential and commercial interiors, including living spaces, corridors, hospitality areas, and retail environments where low glare, compact aperture aesthetics, and high-CRI illumination are required.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Square Deep Regressed Thin Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°
CRI:	95
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Efficacy (lm/W):	107
Finish / Color:	White\|Alzak\|White-Black Duo\|Black\|Oil Rubbed Bronze
Form Factor:	Square
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
