Description

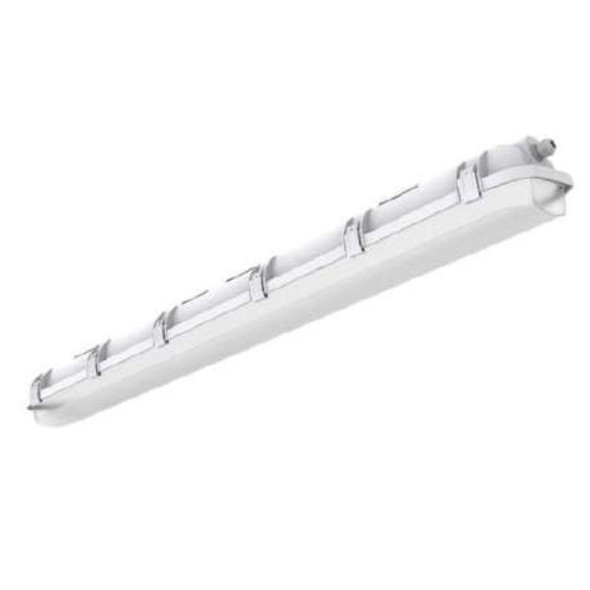

The LLVT series LED linear vapor light is a transformative lighting solution perfect for diverse applications. With 150 watts and an impressive 20,250 lumens, this fixture, featuring a sleek grey finish, offers adjustable color temperatures of 3500K, 4000K, and 5000K. It's designed for longevity with a rated life of up to 50,000 hours and is suitable for wet locations, assuring reliability in harsh environments. Enjoy the peace of mind with a 5-year limited warranty.

Ideal Applications

The versatile LLVT series is a top choice for restaurants, bakeries, food facilities, gyms, pool areas, workshops, garages, canopies, parking garages, cold storage facilities, food processing facilities, farmyards, and other humid, dusty, and wet environments. This fixture is also perfect for NSF-certified applications where high-end architectural aesthetics are desired. Certified under NSF/ANSI 2:2015 Food Equipment standards, it ensures safety and hygiene in splash zones, making it ideal for food processing and preparation areas.

FEATURES

Grey Finish
5-Year Warranty
50,000 Hours Rated Life
Lens: Clear Polycarbonate (Opal Lens Available)
Vandal-Proof Polycarbonate Lens
MCT: Multi Color Temperature (Selectable Switch Inside Fixture)

ELECTRICAL

Voltage: 120-277VAC 50/60Hz
Wattage: 150W
Power Factor: >0.98
Efficacy: 135 LPW

MECHANICAL

Grey Finish
Housing: Polycarbonate
Vandal-Proof Polycarbonate Lens
Stainless Steel Clamp
Highly Impact-Resistant Polycarbonate Construction
UV-stabilized Polycarbonate Diffuser to Eliminate Glare
Enhanced Light Distribution with Diffuser Crystals
Sealed Luminaire with Stainless Steel Clips
Operating Temperature: -22°F to 110°F
Suitable for Wet Locations
IP Rating: IP65

LIGHTING

Dimmable: 0~10V Dimming
LED SMD type: Edison 2835
Total Lumens: 20250LM
Color Temperatures: 3500K, 4000K, 5000K
Color Rendering Index: CRI ≥ 80

APPLICATIONS

Perfect for offices, retail stores, showrooms, and residential applications
Ideal for environments where fixture access is challenging
Suitable for restaurants, bakeries, food facilities, gyms, pool areas, and any application requiring NSF certified fixtures or high-end architectural lighting
NSF/ANSI 2:2015 Food Equipment: Splash Zone – designed for areas subject to splash and food spillage

RESOURCES AND DOWNLOADS

150 Watt LED Linear Vapor Light Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B4 U5 G3
Beam Angle:	H109.9 V104.6°
CRI:	80
Color Temperature:	3500K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	120-277V
Finish / Color:	White
Housing Material:	Polycarbonate
IP Rating:	IP20
Item Height (Inch):	4.88
Item Length (Inch):	52.13
Item Weight (LBS):	17.2
Item Width (Inch):	14.38
L70 Expected Life (hours):	50,000hr
LED Type:	Edison 2835
Lens Material:	Opal Polycarbonate
Light Source:	LED
Lumen Output:	20250
Luminaire Efficacy Rating (LER):	135lm/W
Operating Temperature:	-22°F to 110°F
Power Factor:	>0.92
Ships From:	CA
Special Features:	Selectable CCT
THD:	<19
Voltage:	120-277V
Wattage:	150W
