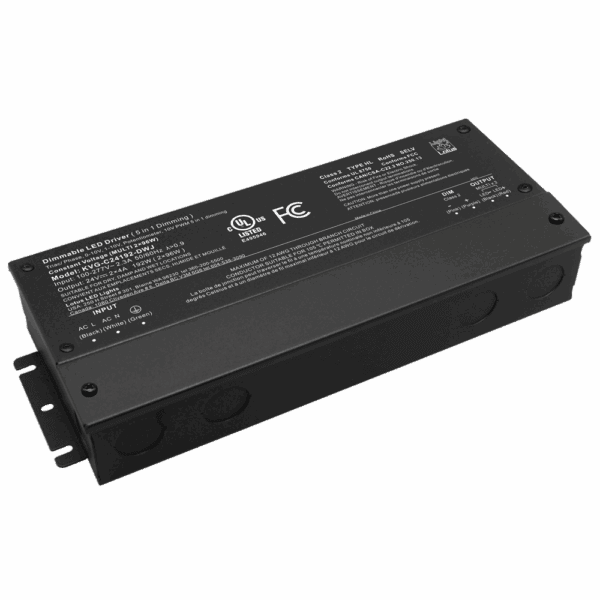

Lotus LED Lights 24V Constant Voltage 192W Driver, 5-in-1 Dimmable, KVG-C24192-DWJ

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Lights 24V Constant Voltage 192W Driver, 5-in-1 Dimmable, KVG-C24192-DWJ

$231.10
  • SKU: LLL-KVG-C24192-DWJ
  • MPN: KVG-C24192-DWJ

Quick Overview

24V 192W class 2 constant voltage LED driver with selectable 5-in-1 dimming, built-in wiring compartments, and wide input voltage range. Ideal for LED tape and 24V ceiling fixtures.

In Stock & Ready To Ship!
Current Stock:Only left: 98
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights KVG-C24192-DWJ is a 24V constant voltage 192W driver designed for superior performance and flexibility in LED lighting installations. As a flagship in the Lotus LED driver lineup, it offers robust dimming compatibility and easy installation, making it a top choice for demanding commercial and residential projects.

Key Features and Benefits

  • 5-in-1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, Potentiometer, and 10V PWM for maximum control flexibility
  • High-quality electronic design with active power factor correction for energy efficiency
  • Multiple knock-outs and built-in wiring compartments for hassle-free installation
  • Fast 0.5 second start time for instant illumination
  • Short circuit, over-voltage, over-heat, and over-load protection for enhanced safety
  • Approved for dry, damp, and wet locations
  • cULus Listed, Class 2, Type HL, FCC Title 47 Class B certified
  • Reliable performance with a 5-year warranty

Specifications

  • Input Voltage: 120-277VAC
  • Output: 24V DC, 2 x 4A
  • Max Wattage: 192W (2 x 96W)
  • PWM Frequency: 20kHz
  • Power Factor: 0.98
  • Ambient Temperature: -40°F to +140°F (-40°C to +60°C)
  • Wiring Volume: 10 cu in per chamber

Common Uses

Perfect for powering LED tape lighting, 24V ceiling fixtures, and other constant voltage LED applications in both residential and commercial environments.
