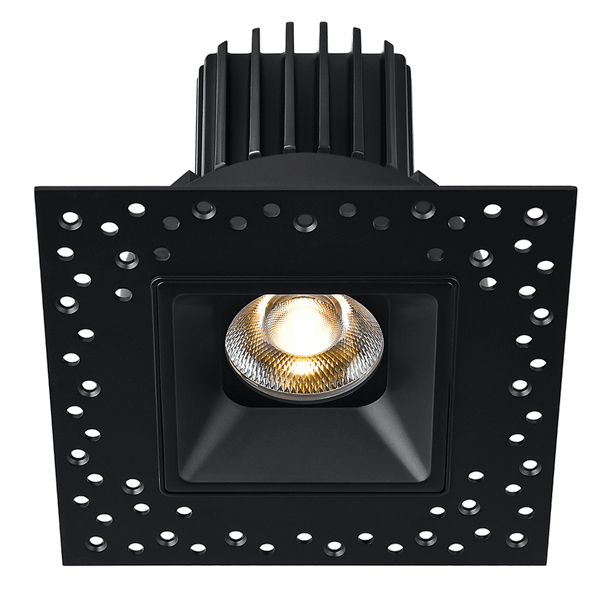

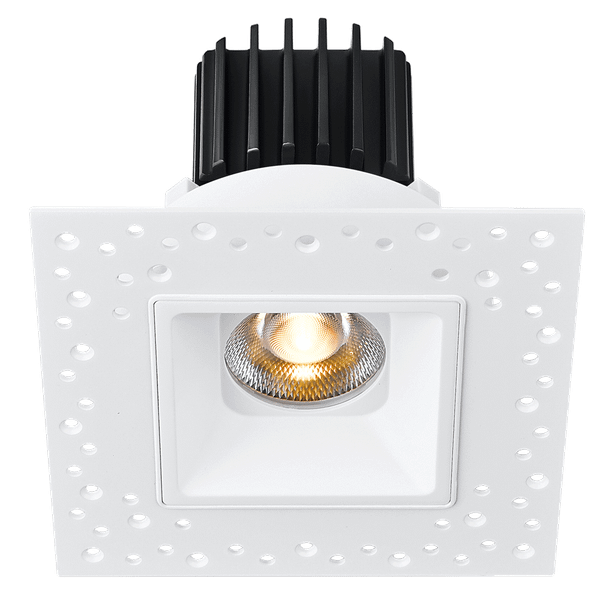

Name: Tangra 3" Fixed Square Recessed Invisible Trim, 3000K, CRI98
Brand: Lotus LED Lights
SKU: LLL-L3F-SRI-3K98
Price: 141.2 USD
Availability: InStock

Description

Details

Delivery & Returns

Description

The Lotus LED Lights Tangra 3\" Fixed Square Recessed Invisible Trim is a premium architectural downlight designed for clean, trimless ceilings and high visual comfort. Built with a solid cast aluminum body and advanced optics, this Canadian-made fixture is a key option in the Tangra lineup for refined residential and commercial interiors.

Key Features and Benefits

Trimless square design delivers a seamless, modern ceiling appearance with reduced glare.
Ultra-high color quality option at CRI98 for accurate, vibrant color rendering in premium spaces.
Flexible lighting performance with selectable 11W/15W driver compatibility and beam spreads from narrow to wide.
Certified for demanding installs with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 ratings.
Long-term reliability backed by 70% light output at 50,000 hours and Lotus lifetime line support plus 5-year warranty coverage.

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W (driver selectable)
Voltage: 120V (Triac driver) | 120-347V (0-10V driver)
Color Temperature: 3000K
CRI: 98
Beam Angle: 20° | 24° | 36° | 50° | 60°
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Dimming: Triac (3% reverse phase cut / 4% forward phase cut) | 0-10V
Input to Fixture: 20-40V DC, max 350mA constant current
Max Ambient Temperature: +113°F (+45°C)
Operating Temperature: -40°F (-40°C) to +113°F (+45°C)
IP Rating: IP54

Common Uses

Ideal for upscale residential rooms, hospitality spaces, retail boutiques, corridors, and other architectural interiors requiring discreet recessed lighting, high CRI performance, and customizable beam control.

RESOURCES AND DOWNLOADS

Tangra 3" Fixed Square Recessed Invisible Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Distribution Type:	Direct
Driver Type:	Fixed Output
Efficacy (lm/W):	107
Finish / Color:	White\|Black
Form Factor:	Square
Housing Material:	Cast Aluminum
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Output Current:	350mA
Output Voltage Range:	20-40V
Primary Material:	Cast Aluminum
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
