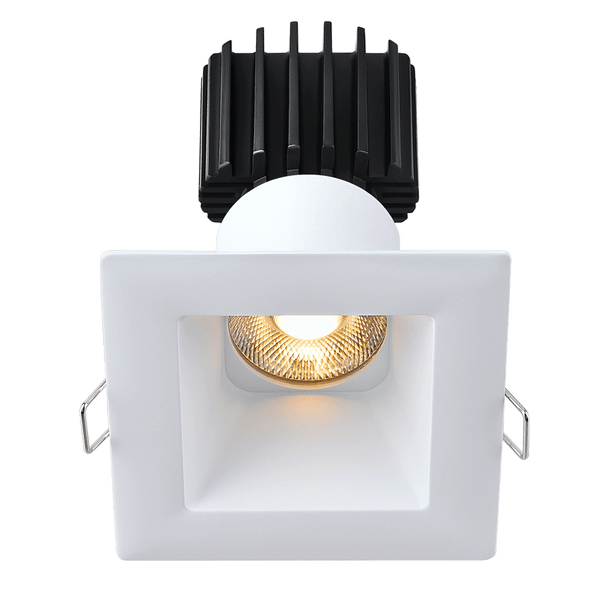

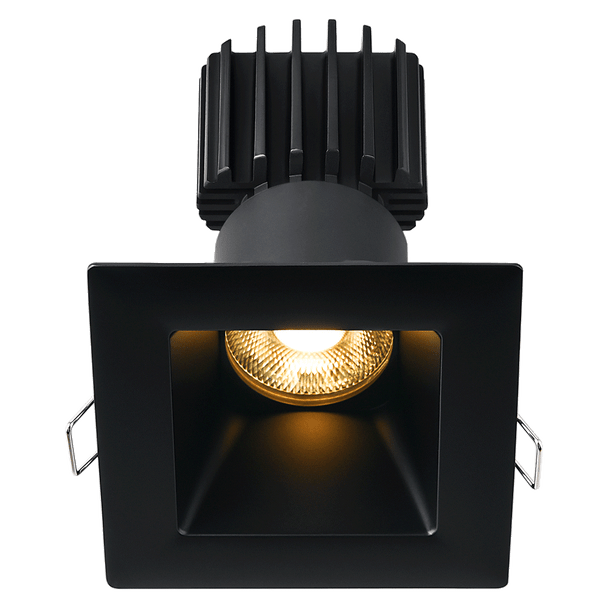

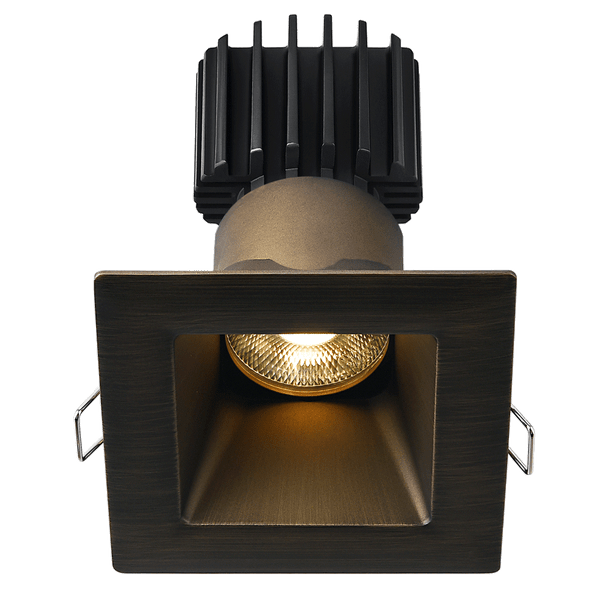

Lotus LED Tangra 3" Fixed Square Deep Regressed Wide Trim, 4CCT+DTW 3500K-2700K, CRI90

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Lotus LED Tangra 3" Fixed Square Deep Regressed Wide Trim, 4CCT+DTW 3500K-2700K, CRI90

$128.90
  • SKU: LLL-L3F-SDW-4C90
  • MPN: L3F-SDW-4C90

Quick Overview

3" fixed square deep regressed recessed downlight for ambient/general lighting with minimal glare, selectable 11W/15W power, up to 1600 lumens, 4CCT+DTW 3500K-2700K, CRI90, and wet-location IP54 rating.

ETL Listed
WET RATED
IC RATED
WARRANTY 5 YEARS
IP54
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Tangra L3F-SDW is a premium 3" fixed square deep regressed downlight engineered for high-quality architectural illumination. Built in Canada with a solid cast aluminum body and advanced optics, it delivers low-glare performance and flexible lighting control for residential and commercial projects. As part of the Tangra lineup, it offers modular configuration options to match demanding design and performance requirements.

Key Features and Benefits

  • Deep regressed optical design helps reduce glare for comfortable ambient and general lighting.
  • Selectable 11W/15W operation supports adaptable light levels and energy-conscious design.
  • 4CCT + Dim-to-Warm tuning (3500K to 2700K) with CRI90 provides warm, high-quality color rendering.
  • Wide beam options and multiple optic styles enable tailored visual effects across applications.
  • Certified cETLus and FCC compliant, with Type IC, Airtight, Open Plenum, and Wet Location IP54 suitability.
  • Backed by Lotus lifetime line support plus 5-year warranty coverage.

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V (driver dependent)
  • Color Temperature: 3500K-2700K (4CCT+DTW option)
  • CRI: 90
  • Beam Angle: 20°|24°|36°|50°
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Dimming Type: Phase|0-10V
  • Output Current: 350mA max constant current
  • Output Voltage Range: 20-40VDC
  • Rated Life (70 Hours): 50000
  • Max Ambient Temperature: 113°F (45°C)
  • IP Rating: IP54
  • Cutout: 2 5/8" square
  • Driver clearance above ceiling: 4"

Common Uses

Ideal for upscale residential interiors, hospitality spaces, retail environments, corridors, and other architectural settings where compact aperture, low glare, and premium color quality are required. Suitable for insulated ceilings and damp/wet-location installations where code-compliant recessed lighting is needed.
