Description

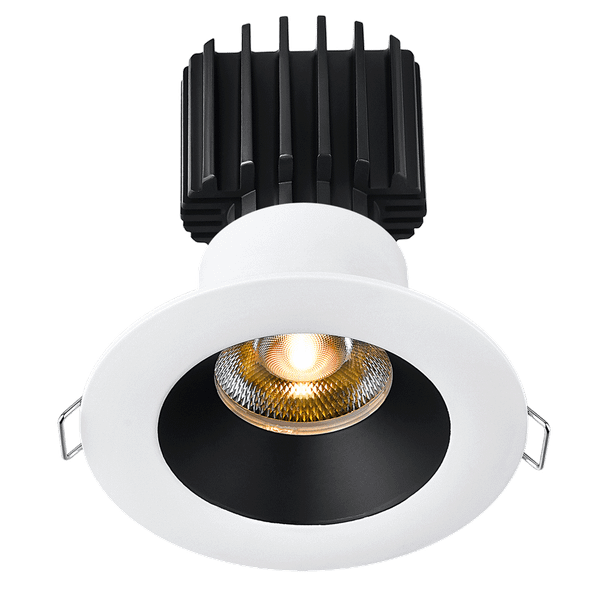

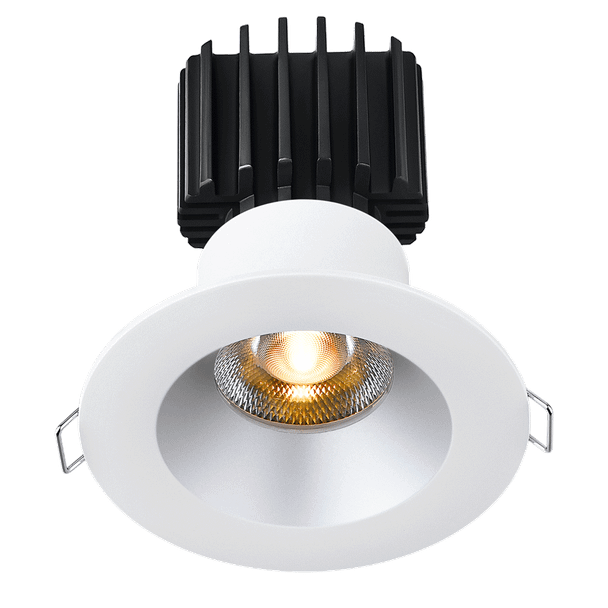

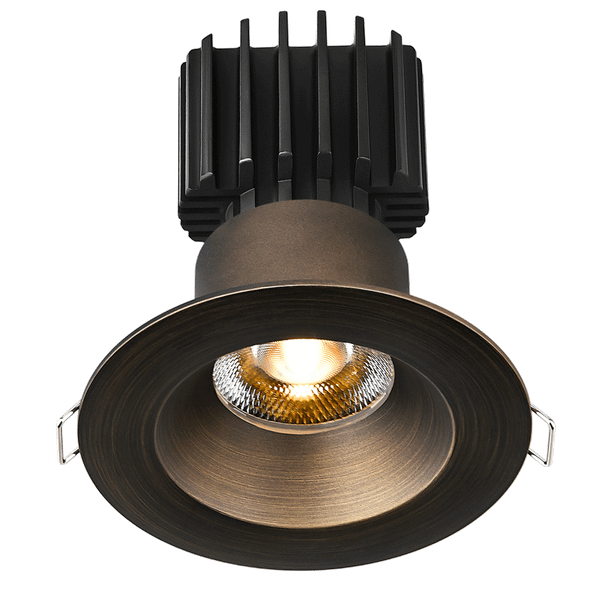

The Lotus Tangra L3F-RRW is a premium 3" fixed round recessed wide trim fixture engineered for high-performance architectural lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers excellent visual comfort and color quality across residential and commercial projects.

Key Features and Benefits

High-output performance with up to 1600 lumens for strong ambient and general illumination.
Flexible lighting control with 11W/15W selectable power and multiple dimming driver options.
Enhanced visual quality using ultra-high CRI LED options and precision beam spreads for reduced glare.
Modular platform supports broad customization of trim finish, optics, beam angle, and CCT packages.
Certified for demanding installs with cETLus and FCC compliance, plus Type IC, airtight, open plenum, and wet location suitability.
Long-term reliability backed by Lotus line-lifetime coverage plus 5 years.

Specifications

Lumen Output: 1600
Wattage: 11W|15W
Voltage: 120V|120-347V
Color Temperature: 2700K|3000K|3500K|4000K|5000K
CRI: 95
Beam Angle: 20°|24°|36°|50°|60°
Dimming Type: Phase|0-10V
Output Current: 350mA
Output Voltage Range: 20-40V DC
Power Factor:
THD:
Rated Life (70 Hours): 50000
Max Ambient Temperature: 113°F (+45°C)
IP Rating: IP54
IC Rated: true
Wet Rated: true
Damp Rated:
Fire Rated:
Primary Material: Cast aluminum
Form Factor: Round

Common Uses

Ideal for residential living spaces, hospitality interiors, retail environments, and commercial general lighting where compact aperture, high color quality, and controlled beam performance are required.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Round Recessed Wide Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	95
Certifications:	ETL Listed, FCC
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K\|1800K\|2200K
Dimming Type:	0-10V\|Phase
Distribution Type:	Direct
Driver Type:	Fixed Output
Efficacy (lm/W):	145
Form Factor:	Round
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	113°F (+45°C)
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable\|Color Temperature Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
