Lotus Tangra 4" Gimbal Round Sloped Wide Trim, 5CCT, CRI95

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

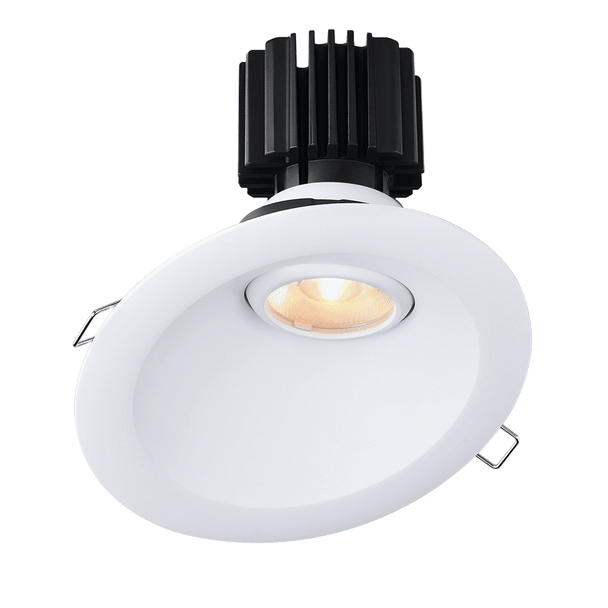

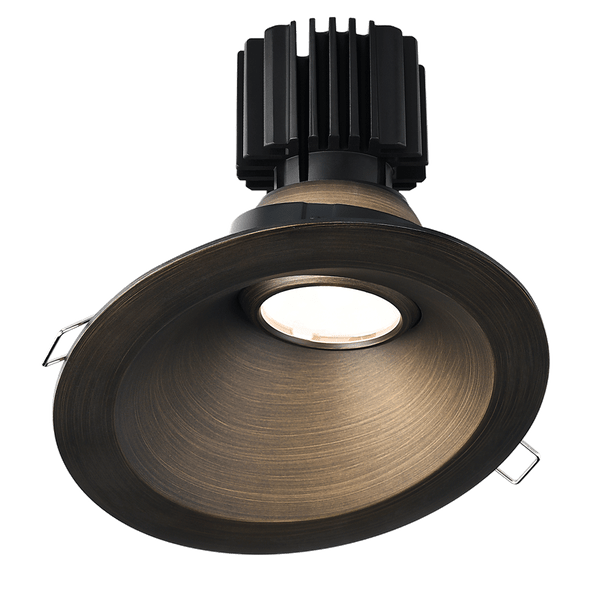

Lotus Tangra 4" Gimbal Round Sloped Wide Trim, 5CCT, CRI95

$144.25
  • SKU: LLL-L3G-RSW-5C95
  • MPN: L3G-RSW-5C95

Quick Overview

4" adjustable gimbal recessed fixture for sloped ceilings and wall washing, with 5CCT (2700K-5000K), CRI95, up to 1600 lumens, and wet-location IP54 rating. Driver required and ordered separately.

ETL Listed
WET RATED
IC RATED
WARRANTY 5 YEARS
IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus Tangra L3G-RSW series is a premium 4" gimbal recessed fixture engineered for sloped ceilings and precision accent lighting. Built in Canada with a solid cast aluminum body, it combines refined aesthetics, modular flexibility, and high color quality for demanding residential and commercial projects.

Key Features and Benefits

  • 30° angled trim supports sloped ceilings from 5° to 55° and effective wall washing
  • Adjustable aiming with 20° tilt and full 360° rotation for precise directional lighting
  • Multiple optical and beam options (20°, 24°, 36°, 50°, 60°) to match task, accent, or ambient needs
  • Certified for safety and performance with cETLus and FCC compliance, plus Type IC, Air Tight, Open Plenum, and Wet Location IP54 suitability
  • Long-term reliability backed by Lotus line-lifetime coverage plus 5-year warranty support

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W (driver selectable)
  • Voltage: 120V|120-347V (driver dependent)
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 95
  • Dimming Type: 0-10V|Phase (Triac forward/reverse phase)
  • Beam Angle: 20°|24°|36°|50°|60°
  • Input to Fixture: 20-40V DC, max 350mA constant current
  • Rated Life (70 Hours): 50000
  • Max Ambient Temperature: -40°F to +113°F (-40°C to +45°C)
  • IP Rating: IP54
  • Primary Material: Cast aluminum

Common Uses

Ideal for residential and commercial interiors requiring directional recessed lighting, including sloped ceilings, feature walls, corridors, hospitality spaces, and wet-location soffits where high CRI and flexible beam control are important.
