LPNG Series 1x4, LED Backlit Panel Lights, 20W/30W/40W, Multi-Power, Multi-CCT

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LPNG Series 1x4, LED Backlit Panel Lights, 20W/30W/40W, Multi-Power, Multi-CCT

$65.55
MSRP: $74.03
You save $ 8.48 (11%)
  • SKU: WM-LPNG-1X4-MCTP
  • UPC: 845060057775
  • MPN: LPNG-1X4-MCTP

Quick Overview

LPNG Series 1x4, LED Backlit Panel Lights, 20W/30W/40W, Multi-Power, Multi-CCT (wattage: 20/30/40W; lumens: 2600/3800/4800; CCT: 35K/40K/50K; voltage: 120-277V; finish: White)

Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 51
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Discover the Ultimate Indoor Commercial Lighting Solution

Introducing the versatile LPNG Series 1x4 lighting fixture, ideal for various indoor commercial applications. This premium fixture is perfect for environments such as hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, and educational facilities. Its multi-power and multi-color temperature options make it a flexible solution for any setting.

Key Features and Benefits

  • Multi Color Temperature & Multi Power (Selectable Switch on Back of Fixture)
  • No flickering, No humming, No RF interference
  • Pre-installed Earthquake Hooks and Suspension Hooks
  • Soft and wide light-emitting
  • 50,000 hours rated life
  • No infrared rays, No ultraviolet radiation, No thermal effect
  • Elegant white finish

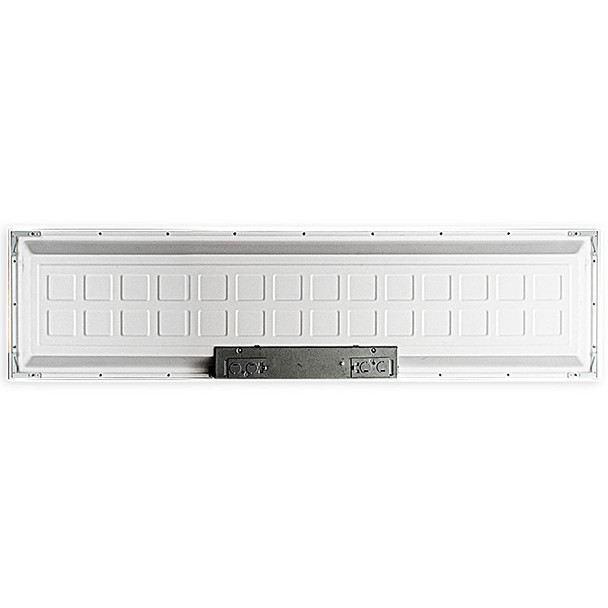

  • External driver mounted on top
  • Operating Temperature: -68°F to 104°F
  • Surge Protector: 1KV
  • Dimmable: 0~10V Dimming
  • 5-Year Warranty

Technical Specifications

  • Voltage: AC120V-277V 50/60Hz
  • Power Factor: >0.90
  • Wattage: 20W/30W/40W
  • Efficacy: 130/127/120 LPW
  • Fixture Operating Voltage: 36VDC
  • Rated Input Current: 337/253/168mA
  • Total Harmonic Distortion: ≤ 20%
  • Total Lumens: 2600LM/3800LM/4800LM
  • Color Temperatures: 3500K/4000K/5000K
  • Color Rendering Index: CRI ≥ 80
  • Beam Angle: 110°
  • Dimensions: 47 4/5” x 11 4/5” x 1 3/4”

Ensure your indoor spaces are brightly and efficiently lit with the LPNG Series 1x4. With its advanced features and reliable performance, it is the top choice for commercial lighting needs.

RESOURCES AND DOWNLOADS

LPNG Series 1x4 Spec Sheet
