Name: 12 Watt Architectural Outdoor/Indoor LED Wall Light
Brand: Westgate Manufacturing
SKU: WM-LRS-G-MCT-C90
Price: 68.45 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

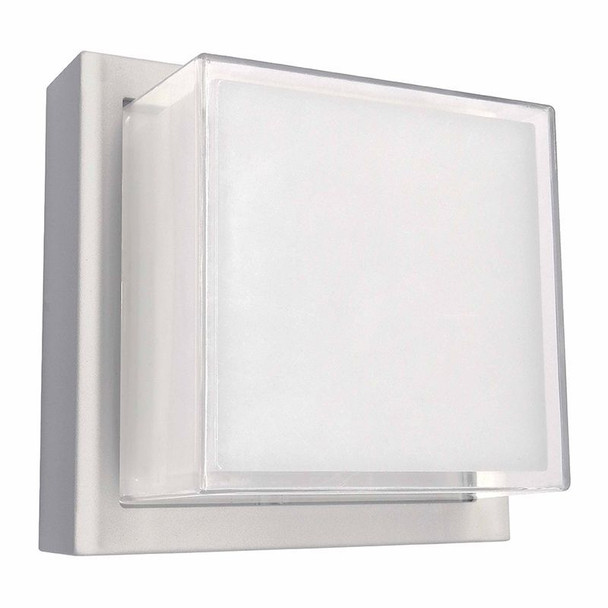

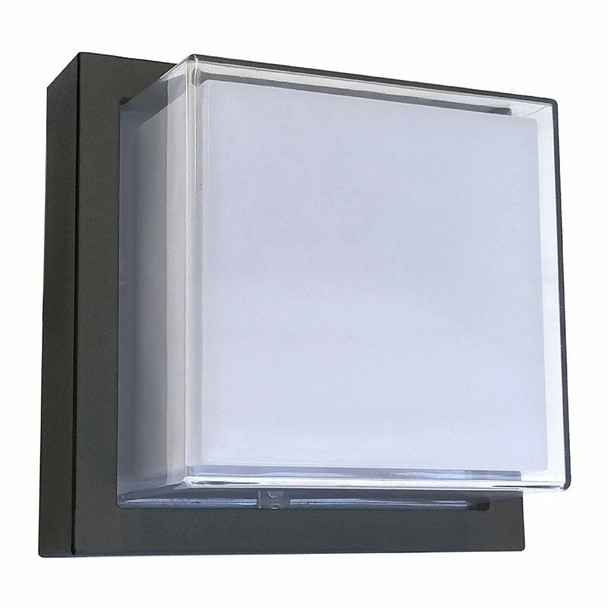

The Architectural Outdoor/Indoor LED Wall Light, SKU: WM-LRS-G-MCT-C90, is an energy-efficient solution for your lighting needs. Designed for versatility and durability, this 12-watt light offers 650 lumens of brightness and features adjustable CCT options of 3000K, 4000K, and 5000K. Available in sleek black, pristine white, or marine grade bronze finish, it is built to last up to 70,000 hours and comes with a 7-year limited warranty.

Ideal Applications

This LED Non-Cutoff Wall Pack with Photocell is perfect for general site lighting, loading docks, doorways, pathways, and parking areas. Whether installed indoors or outdoors, its robust design ensures it performs at its best in all conditions.

Features

Back plate made of die-cast aluminum
Durable polycarbonate lens
7-year limited warranty
Multi CCT switch is located inside the fixture

Electrical Specifications

Voltage: 120V AC 60Hz
Wattage: 12W
Power Factor: >0.90
Efficacy: 54 LPW

Mechanical Specifications

Die-cast aluminum back plate with mounting/gasket installed
Polycarbonate lens for durability
Operating temperature range: -4°F to 104°F
Suitable for wet locations
7-year warranty for peace of mind
IP44 rated

Lighting Specifications

Uses SMD 3030/Philips Lumileds LEDs
Total brightness: 650 lumens
Adjustable color temperatures: 3000K, 4000K, 5000K
Color Rendering Index (CRI): ≥ 90
Beam angle: 90° x 110°
Long-lasting: Rated life of 70,000 hours

RESOURCES AND DOWNLOADS

LRS Series Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B0-U3-G1
Beam Angle:	90° x 110°
CRI:	90
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|ETL Listed
Country of Origin:	CHINA
Driver Type:	120V
Finish / Color:	White\|Black\|Bronze
Fixture Size:	6 3/8" x 6 3/8" x 3 7/8"
Housing Material:	Aluminum
IP Rating:	IP44
Item Height (Inch):	6.3
Item Length (Inch):	6.3
Item Weight (LBS):	1.9
Item Width (Inch):	4
L70 Expected Life (hours):	70,000hr
LED Type:	Lumileds
Lens Material:	Dual Polycarbonate Lens
Light Source:	LED
Lumen Output:	650
Operating Temperature:	-4ºF to 104ºF
Pack Size:	7.7
Power Factor:	>90
Ships From:	CA
Special Features:	Selectable CCT
Voltage:	120V
Wattage:	12W
