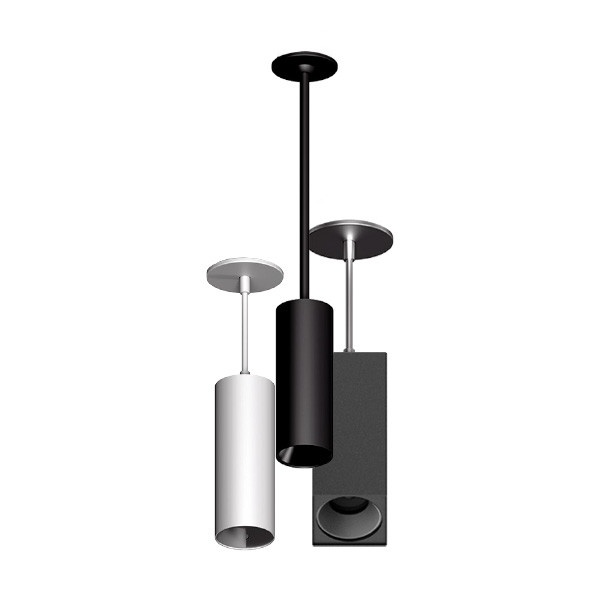

LTMACD02 Series 4" LED Architectural Cylinder Downlight, 25W, 120-277V, DDK Selectable CCT

By Lum-Tech Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LTMACD02 Series 4" LED Architectural Cylinder Downlight, 25W, 120-277V, DDK Selectable CCT

$176.90
  • SKU: LT-LTMACD02-4-25W-27V-DDK
  • MPN: LTMACD02-4-25W-27V-DDK

Quick Overview

4" indoor architectural LED cylinder downlight with 25W selectable output, 120-277V input, and DDK field-selectable 2700K-5000K CCT. Features CRI 80/90, adjustable 18°-50° beam, multiple mounting options, and dimming compatibility.

UL Listed
Energy Star
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lum-Tech LTMACD02 Series is a premium indoor architectural cylinder downlight designed for modern commercial and residential interiors. This 4" configuration combines clean aesthetics with field-selectable performance, making it a flexible solution across changing project requirements. As a core offering in Lum-Tech’s architectural lineup, it delivers high visual comfort, modular optics, and dependable long-life operation.

Key Features and Benefits

  • Field-selectable CCT technology (DDK) enables on-site tuning from warm to cool white for design flexibility.
  • Three-level selectable wattage platform helps balance brightness and energy savings per application.
  • Stepless adjustable beam spread from 18° to 50° with preset detents supports accent, task, and ambient lighting.
  • High color quality with CRI 80/90 options improves material and finish appearance in architectural spaces.
  • UL and cUL listed for damp locations plus Energy Star certification for code-conscious projects.
  • Backed by a 5-year limited warranty and rated L70 life of 100,000 hours for long-term reliability.

Specifications

  • Size: 4" diameter cylinder
  • Input Voltage: 120-277V AC
  • Wattage (4"): 25W / 19W / 13W selectable
  • Lumen Output (4"): 1240-2500 lm (CCT and wattage dependent)
  • Color Temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
  • Beam Angle: Adjustable 18°-50° (24°, 36°, 50° detents)
  • Dimming: 0-10V and phase-cut compatible
  • Power Factor: >0.9
  • THD: <20%
  • Operating Temperature: -20°C to 40°C (-4°F to 104°F)
  • Rated Life: L70 ≥ 100,000 hours

Common Uses

Ideal for lobbies, corridors, hospitality venues, retail environments, galleries, offices, and upscale residential interiors where architectural style, beam control, and tunable light output are important.
