MaxLite Round LED Light Engine, 5.5", 17W, 2700K, 90 CRI, 120V

By MaxLite
Clearance

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

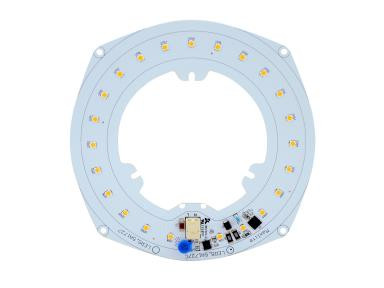

MaxLite Round LED Light Engine, 5.5", 17W, 2700K, 90 CRI, 120V

Now: $1.45
Reg: $3.13
Sale 54%
You save $ 1.68
  • SKU: MX-LER5.5A1727C
  • MPN: LER5.5A1727C

Quick Overview

MaxLite LER Series 5.5" round LED light engine for new fixture builds, delivering 1430 lm at 17W, 2700K, 90 CRI, 120V input, and phase dimming to 5% for ceiling, flush mount, and pendant applications.

DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
This item is sold in multiples of 30
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The MaxLite LER Series Round LED Light Engine is a compact, high-performance module designed for integration into new luminaire construction. Built around a driver-on-board architecture, this 5.5" model simplifies fixture design by connecting directly to 120V power. It is an important option in the MaxLite lineup for OEM and fixture manufacturers seeking efficient, high-CRI light output in decorative and utility ceiling fixtures.

Key Features and Benefits

  • Driver-on-board design enables direct 120V connection for streamlined fixture assembly
  • High color quality with 90 CRI for improved visual comfort and color rendering
  • Phase dimming compatibility with ELV/LED dimmers down to 5% for flexible light control
  • UL Recognized component with FCC compliance for dependable integration in luminaires
  • RoHS compliant construction with no mercury supports environmentally conscious projects
  • Backed by a 5-year warranty for long-term confidence

Specifications

  • Lumen Output: 1430
  • Wattage: 17W
  • Input Voltage: 120V
  • Color Temperature: 2700K
  • Efficacy: 82 lm/W
  • Power Factor: 0.98
  • Rated Life (L70): 50000 hours
  • Operating Temperature: 0b0F to 104b0F
  • Maximum Surface Temperature (Tc): 194b0F (90b0C)
  • Diameter: 5.5"

Common Uses

Ideal for ceiling lights, flush mount fixtures, and pendant fixtures in residential and light commercial interiors where compact form factor, warm CCT, and smooth dimming are required.
