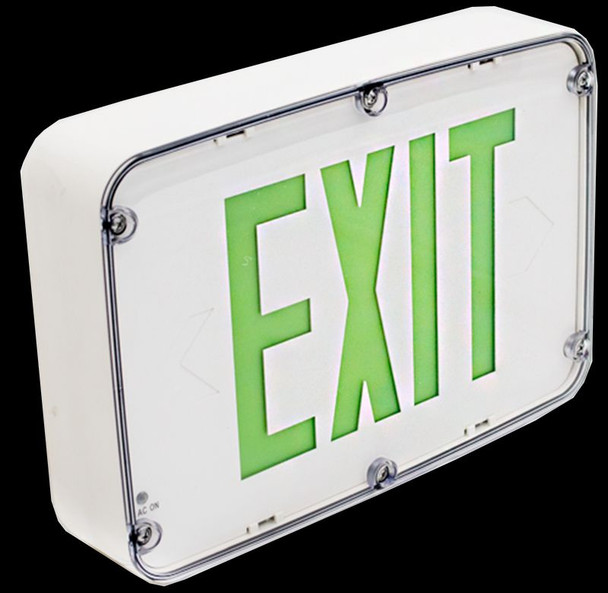

NEMA 4X LED exit sign double faceplate, 3.2 (red) or 3.8 (green) watts, red or green letters color, 120-277 voltage, 3 years warranty.
ELECTRICAL SPECIFICATIONS
- Voltage: dual 120V/277V
HOUSING SPECIFICATIONS
- Reinforced polycarbonate Housing with white, gray, black finish
- Universal knockout pattern on back provided with gasket for watertight seal for back mount
- Polycarbonate mounting canopy included for top or end mount.
- EZ snap-out Chevron directional indicators
- Double faceplate
- NEMA4X rated
- IP Rating: IP66 Suitable for wet location
TECHNICAL SPECIFICATIONS
- LED indicator light alerts on battery condition
- 4.8V Rechargeable Ni-Cad battery
- 90-minute EM-rated with push style test switch and red indicator light
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours
WARRANTY
- Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes
RESOURCES AND DOWNLOADS
| SKU | WM-XTN4X-2-EM |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Driver Type | 120-277V |
| Total Input Watts | 3.2W |
| Total Input Watts | 3.8W |
