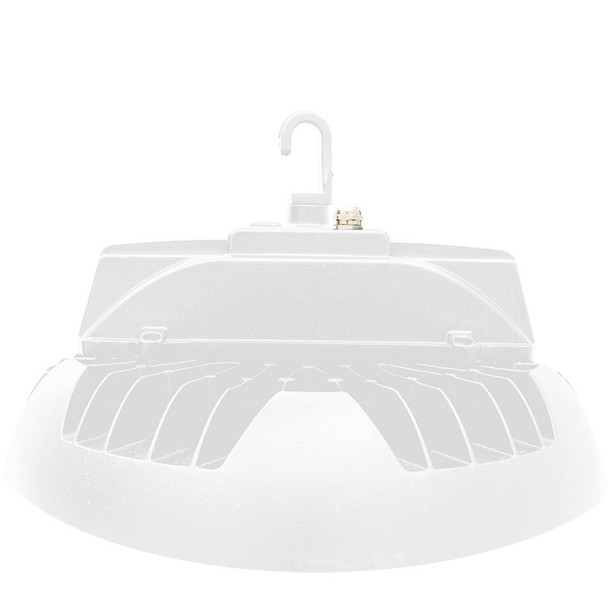

New generation UFO highbay, 100W/ 150W/ 200W/ 230W power selectable, 13,000-29,900 lumens, available in 3000K/ 4000K/ 5000K/ 5700K CCT adjustable, up to 50,000 hours rated life, white finish, suitable for wet locations.
In a aluminum shell designed for heat dissipation, UHX is IP65 water resistant rated.
FEATURES
- Waterproof design, suitable for wet locations
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
- Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire Resistant

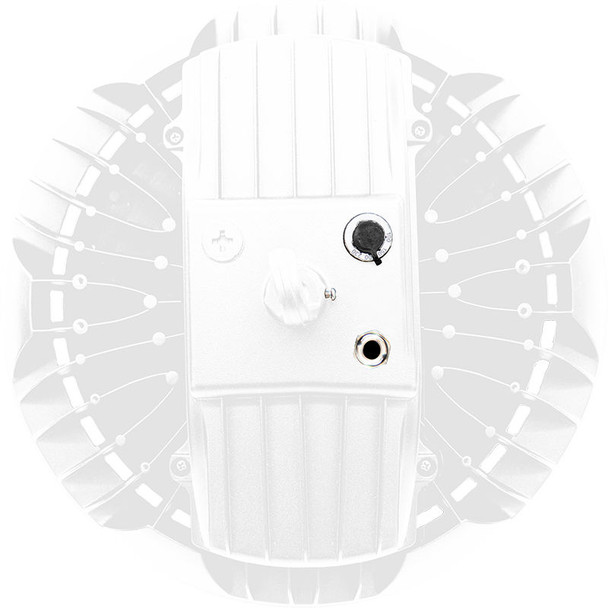

- Multi Color Temperature & Multi Power (Selectable Switch Located On The Driver Housing)
ELECTRICAL
- Input Wattage: 100W/150W/200W/230W
- Input Voltage: 120-277VAC 50/60Hz
- Power Factor: >0.9
- THD: <20%
- Efficacy: 130 LPW
MECHANICAL
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
- Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
- LED: LUMILEDS 2835
- LED PCB Board: High Conductive, Waterproof, Aging Resistance, salt mist Resistance, Ensure the Safety and Long Lifespan
- Operating temperature: -40°F to 122°F
- IP rating: IP65, Wet Locations
- Lifespan: 50,000 Hrs
LIGHTING
- Dimming: 0~10V
- Multi Color Temperature & Multi Power (Selectable Switch Located On The Driver Housing)
- Total Lumens: 13000/19500/26000/29900 LM
- Color Temperatures: 3000K/ 4000K/ 5000K/ 5700K
- Color Rendering index: > 80
- Beam Angle: 90°
- Lifespan: 50,000 Hrs
APPLICATIONS
- Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.
RESOURCES AND DOWNLOADS
| SKU | WM-UHX-230W-MCTP-WH |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 120-277VAC 50/60Hz |
| Lumen Output | 13,000lm - 29,900lm |
| Luminaire Efficacy Rating (LER) | 130 lm/W |
| L70 Expected Life (hours) | 50,000 hrs |
| Color Rendering Index (CRI) | >80 |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 100W/150W/200W/230W |
