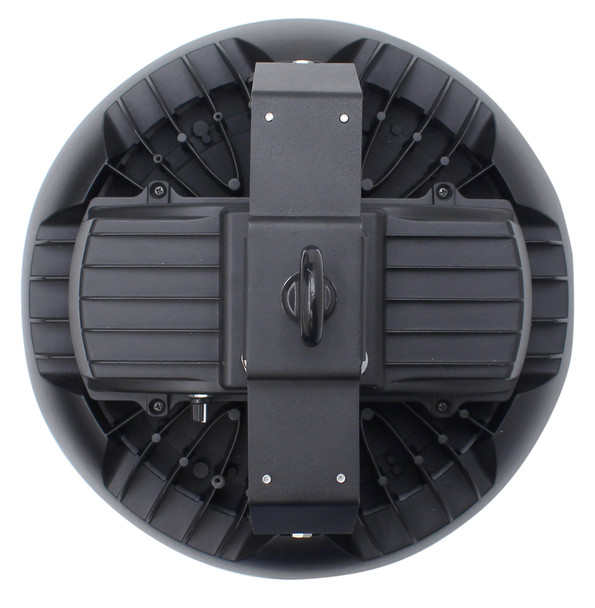

New generation UFO highbay, 150W/ 200W/ 240W/ 300W wattage selectable, 24,000-48,000 lumens, available in 5000K color temperature (CCT), up to 50,000 hours rated life, suitable for wet locations, 5 years limited warranty.
In a aluminium shell designed for heat dissipation, UHX is IP65 water resistant rated and ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses and storage buildings.
FEATURES
- Waterproof design, suitable for wet locations
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
- Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
- Multi Power (Selectable Switch Located On The Driver Housing)
ELECTRICAL
- Input Wattage: 150W/ 200W/ 240W/ 300W
- Input Voltage: 480V AC 50/60Hz
- Power Factor:>0.9
- THD: <20%
- Efficacy: 160 LPW
MECHANICAL
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
- Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
- LED: LUMILEDS 2835
- LED PCB Board: High Conductive, Waterproof, Aging Resistance, salt mist Resistance, Ensure the Safety and Long Lifespan.
- Operating temperature: -40°F to 122°F
- IP rating: IP65, Wet Locations
- 5-Year Warranty
LIGHTING
- Dimming: 0-10V
- Multi Power (Selectable Switch Located On The Driver Housing)
- Total Lumens: 24000/ 32000/ 38400/ 48000LM
- Color Temperatures: 5000K
- Color Rendering index: > 80
- Beam Angle: 90°
- Lifespan: 50,000 Hrs
RESOURCES AND DOWNLOADS
| SKU | WM-UHX-300W-MP-50K-480V |
|---|---|
| Weight | 24.00 LBS |
| Light Source | LED |
| Fixture Size | 9"x16" |
| Color Rendering Index (CRI) | >80 |
| Luminaire Efficacy Rating (LER) | 160lm/w |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 150W/200W/240W/300W |
