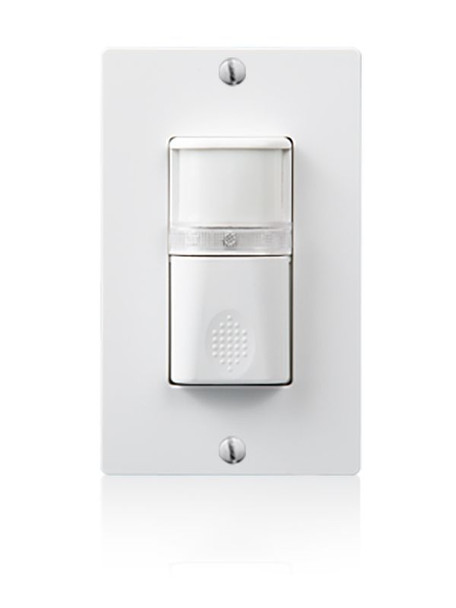

Occupancy and Vacancy Sensors 120VAC, 60Hz

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Occupancy and Vacancy Sensors 120VAC, 60Hz

$20.70
MSRP: $23.39
You save $ 2.69 (12%)
  • SKU: WM-YM183-W
  • UPC: 845060074680

Quick Overview

Occupancy and Vacancy Sensors 120VAC, 60Hz (wattage: 1200; finish: White)

WARRANTY 5 YEARS
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 493
Free shipping on this item
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Enhance energy efficiency and streamline lighting control with our state-of-the-art occupancy and vacancy sensors. Covering an expansive area of 720 square feet, these sensors are perfect for a variety of environments like offices, conference rooms, break rooms, storage areas, basements, and restrooms. With UL listing and adjustable time delay features ranging from 15 seconds to 30 minutes, these sensors offer reliability and customizable operation.

ELECTRICAL SPECIFICATIONS

  • Max Load: Supports 0~800W at 120V and 0~1200W at 277V
  • Voltage: Operates on 120/277VAC, 60Hz
  • Load Horsepower: Rated at 1/6HP

HOUSING DETAILS

  • Standard Fit: Compatible with any standard wall-box
  • Coverage Area: Extensive 720 ft
  • Mounting: Designed for wall mount
  • Operating Temperature: Functions effectively from 32°F to 131°F

TECHNICAL SPECIFICATIONS

  • Detection Angle: Wide 180° coverage
  • Operation Modes: Automatic ON/OFF and Manual ON/Automatic OFF
  • Technology: Utilizes advanced Passive Infrared (PIR) Technology
  • Compliance: Meets California Title 24 standards
  • Indicator: Green LED signals motion detection
  • Load Compatibility: Supports Incandescent, fluorescent, LED lamps, CFL, MLV, and electronic low-voltage lighting
  • Operating Humidity: 95% RH, non-condensing
  • Adjustable Features: Customizable time delay and sensitivity settings
  • Neutral Required: Yes

RESOURCES AND DOWNLOADS

Occupancy & Vacancy Sensor Spec Sheet
