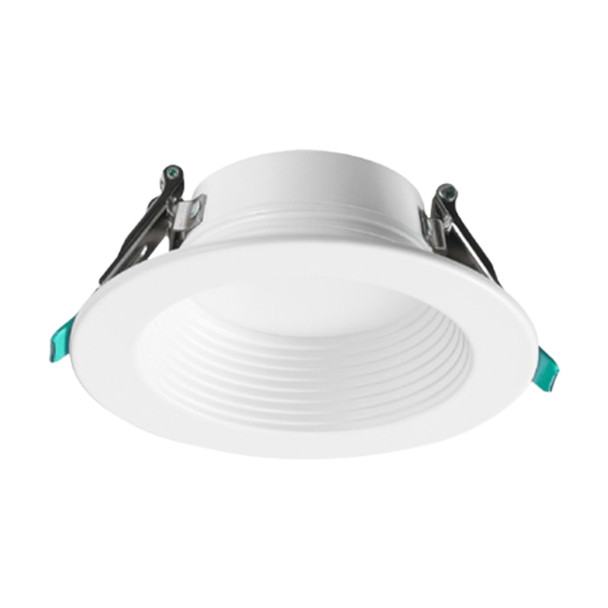

Portor Can-Less Downlight with Remote J-Box and CCT Selector, 4" Aperture, 10W, 5CCT, 120-277V, 2nd Generation

By Portor Industry

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Portor Can-Less Downlight with Remote J-Box and CCT Selector, 4" Aperture, 10W, 5CCT, 120-277V, 2nd Generation

$27.05
  • SKU: PI-PT-DLR-C-4I-10W-5CCT-277-2
  • MPN: PT-DLR-C-4I-10W-5CCT-277-2

Quick Overview

4" can-less recessed downlight with remote J-box, selectable 2700K-5000K CCT, 10W power, 120-277V input, 0-10V dimming, IP65 wet-location rating, and high-CRI 90 light quality for residential and commercial interiors.

ETL Listed
Energy Star
WET RATED
IC RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Portor PT-DLR-C series can-less recessed downlight is designed for fast, housing-free installation with a remote junction box and spring-action clips. This 4" model combines selectable white color temperatures, high color rendering, and broad voltage compatibility, making it a versatile choice across modern retrofit and new-construction projects.

Key Features and Benefits

  • 5-CCT field selectability (2700K/3000K/3500K/4000K/5000K) for flexible ambiance and task lighting from one fixture.
  • Can-less direct-mount design with remote J-box reduces install time and eliminates the need for a traditional recessed housing.
  • 0-10V dimming support enables smooth light control and energy optimization.
  • IP65 wet-location suitability supports use in moisture-prone areas.
  • High-quality light output with 90 CRI for improved visual clarity and color appearance.
  • Certified for safety and performance with ETL Listed, FCC, RoHS, CE, and Energy Star credentials, backed by a 5-year limited warranty.

Specifications

  • Wattage: 10W
  • Voltage: 120-277V
  • Frequency: 60Hz
  • Beam Angle: 100°
  • Power Factor: >0.9
  • Delivered Lumens: 777-823 lm (depending on CCT)
  • Efficacy: Up to 93 lm/W
  • Working Temperature: -4°F to 113°F
  • Dimensions: A 2", B 5.5", C 14", D 4.7", E 2.7", F 1.3"

Common Uses

Ideal for residential homes, multifamily and high-rise condominiums, healthcare facilities, universities and campuses, shopping centers, and hospitality environments where clean recessed aesthetics and adaptable CCT are important.
