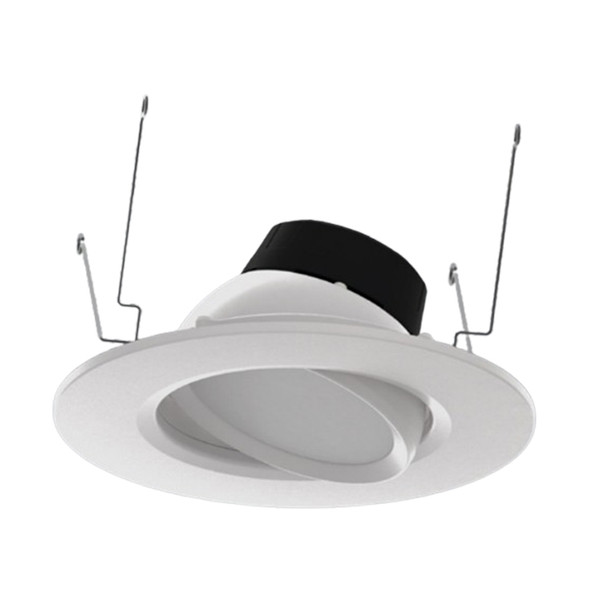

Portor PT-DLR-G-2 Series Retrofit Gimbal Downlight, 4", 8W, 5CCT, Generation 2

By Portor Industry

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Portor PT-DLR-G-2 Series Retrofit Gimbal Downlight, 4", 8W, 5CCT, Generation 2

$16.30
  • SKU: PI-PT-DLR-G-4I-8W-5CCT-2
  • MPN: PT-DLR-G-4I-8W-5CCT-2

Quick Overview

4" commercial retrofit gimbal downlight with selectable 2700K-5000K CCT, 8W power, up to 832 lumens, 90 CRI, Triac dimming, and wet-location rating for versatile indoor and outdoor recessed applications.

ETL Listed
Energy Star
Title 24 Compliant
JA8 Compliant
WET RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Portor PT-DLR-G-2 Series retrofit gimbal downlight is a commercial-grade recessed solution designed for flexible aiming and field-selectable color temperature. This 4" model combines efficient output, high color quality, and simple retrofit installation, making it a practical choice across demanding project types.

Key Features and Benefits

  • 5CCT selectable light output (2700K/3000K/3500K/4000K/5000K) helps reduce SKU complexity on jobsites.
  • Adjustable gimbal design supports directional accent and task lighting in recessed applications.
  • High 90 CRI performance improves visual clarity and color appearance in commercial interiors.
  • Triac dimming compatibility enables smooth light-level control with common phase dimmers.
  • Die-cast aluminum housing and trim in architectural white provide durability and corrosion resistance.
  • ETL Listed, FCC, Energy Star, and Title 24/JA8 compliance support code-driven projects.
  • Backed by a 5-year limited warranty for long-term confidence.

Specifications

  • Lumen Output: 741|776|819|832|815
  • Wattage: 8W
  • Voltage: 120V
  • Frequency: 60
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • Power Factor: 0.9
  • THD: 20
  • Rated Life (L70): 50000 hours
  • Efficacy: 100|106|113|114|110 lm/W
  • Dimensions: A 2.79", B 2.54", C 5.03"
  • Current: 65mA
  • IP/Location Rating: Wet Location

Common Uses

Ideal for commercial complexes, hospitality spaces, healthcare facilities, schools, shopping centers, industrial areas, and hotel environments where tunable CCT and directional recessed lighting are needed.
