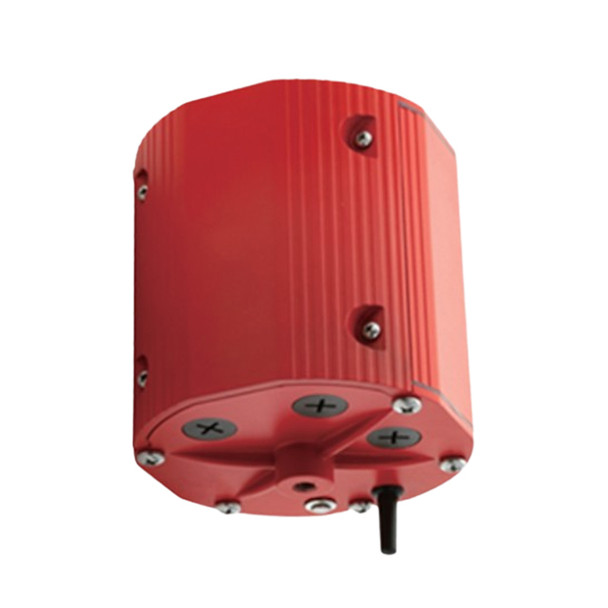

Portor PT-EMU3 Emergency LED Driver, 25W, 100-347V, 50/60Hz, 170VDC Output, Li-Ion Battery, 90-Min Emergency Operation

By Portor Industry

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Portor PT-EMU3 Emergency LED Driver, 25W, 100-347V, 50/60Hz, 170VDC Output, Li-Ion Battery, 90-Min Emergency Operation

$284.90
  • SKU: PI-PT-EMU3-25W
  • MPN: PT-EMU3-25W

Quick Overview

Portor PT-EMU3-25W emergency LED driver delivers 25W constant backup power for round high bays, with 100-347V input, 170VDC output, Li-Ion battery, self-diagnostics, and 90-minute emergency runtime.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left: 71
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Portor PT-EMU3 Series emergency LED driver is designed to provide reliable backup power for round high bay fixtures in commercial and industrial spaces. This 25W model combines compact form, integrated junction box convenience, and intelligent self-diagnostics to simplify emergency lighting compliance. As part of Portor’s emergency power lineup, it offers dependable 90-minute operation during outages while supporting modern 0-10V dimmable LED systems.

Key Features and Benefits

  • Delivers constant 25W emergency output to keep high bay fixtures illuminated during power loss.
  • Built-in monthly and annual self-diagnostic testing helps support ongoing life-safety readiness.
  • Integrated junction box and included mounting accessories streamline installation and wiring.
  • Remote test switch/charging indicator with optional wireless remote enables easier maintenance checks.
  • UL Listed for US and Canada and tested to CSA C22.2 No. 141 for field or factory installation confidence.
  • Backed by a 5-year limited warranty for long-term reliability.

Specifications

  • Input Voltage: 100-347V
  • Frequency (Hz): 50|60
  • Wattage: 25W
  • Output Voltage Range: 170VDC
  • Battery Type: Li-Ion
  • Emergency Operation: 90 minutes
  • Recharge Time: 24 hours
  • Input Current: 200mA max
  • Input Power Rating: 12W max
  • Surge Protection: 3kV line-neutral
  • Ambient Temperature: 32°F-122°F (0°C-50°C)
  • Weight: 4.14 lbs

Common Uses

Ideal for round LED high bay fixtures in warehouses, manufacturing areas, gymnasiums, and other indoor damp-location commercial environments requiring code-oriented emergency egress illumination.
