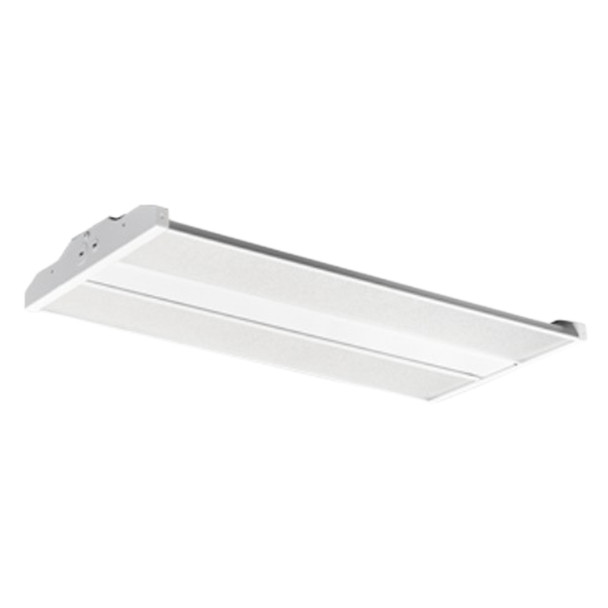

Portor PT-LHTL Twin Lens Linear High Bay, 115 Series, 78W/92W/115W Selectable, 4000K/5000K Selectable, 120-277V, 0-10V Dimmable

By Portor Industry
Portor PT-LHTL Twin Lens Linear High Bay, 115 Series, 78W/92W/115W Selectable, 4000K/5000K Selectable, 120-277V, 0-10V Dimmable

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Portor PT-LHTL Twin Lens Linear High Bay, 115 Series, 78W/92W/115W Selectable, 4000K/5000K Selectable, 120-277V, 0-10V Dimmable

$98.75
  • SKU: PI-PT-LHTL-115-2C3P
  • MPN: PT-LHTL-115-2C3P

Quick Overview

Selectable-output linear LED high bay for warehouses, gyms, and retail high ceilings, featuring 78W/92W/115W and 4000K/5000K tuning, 120-277V input, 0-10V dimming, 85°x85° optics, and 100,000-hour L70 life.

UL Listed
DLC Premium
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left: 784
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Portor PT-LHTL-2C3P Series Twin Lens Linear High Bay is built for efficient, high-uniformity illumination in demanding commercial and industrial spaces. As part of Portor’s value-driven high bay lineup, this 115 model combines selectable wattage and CCT flexibility to simplify stocking and project design.

Key Features and Benefits

  • Field-selectable output (78W/92W/115W) helps match light levels to changing ceiling heights and task needs.
  • Dual CCT selection (4000K/5000K) supports both neutral and cooler visual environments from one fixture.
  • Twin-lens 85° x 85° optical design improves distribution while reducing glare in open industrial areas.
  • 0-10V continuous dimming standard for energy savings and control integration.
  • Durable galvanized cold-rolled steel body with white powder-coat finish for long-term reliability.
  • UL Listed and DLC Premium qualified, backed by a 5-year limited warranty for confidence in commercial installations.

Specifications

  • Lumen Output: 11700|13800|17250
  • Voltage: 120-277V
  • Frequency: 50/60Hz
  • CRI: 80
  • Power Factor: 0.9
  • THD: 10%
  • Beam Angle: 85° x 85°
  • Current: 1.54-3.33A
  • Operating Temperature: -4°F to 122°F
  • Rated Life: 100000 hours (L70)
  • Dimensions: 16.8" L x 10.2" W x 1.8" H
  • Mounting: V-hooks standard

Common Uses

Ideal for large warehouses, parking and storage garages, gymnasiums, and retail facilities with high ceilings where efficient, uniform, and controllable lighting is essential.

RESOURCES AND DOWNLOADS

Portor PT-LHTL Twin Lens Linear High Bay Spec Sheet
