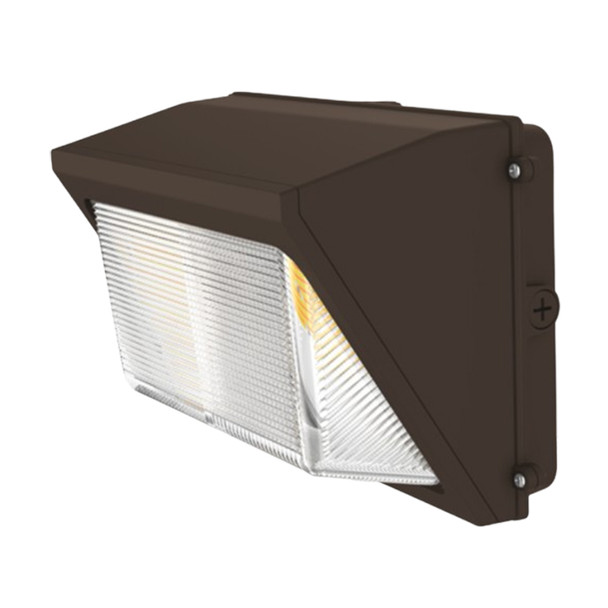

Portor PT-WPH-3CP-4 Half Cut-Off Wall Pack, 120W Max, 3-CCT Selectable 3000K/4000K/5000K, Bronze, Integrated Photocell, 100-277V

By Portor Industry

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Portor PT-WPH-3CP-4 Half Cut-Off Wall Pack, 120W Max, 3-CCT Selectable 3000K/4000K/5000K, Bronze, Integrated Photocell, 100-277V

$142.60
  • SKU: PI-PT-WPH-120-3CP-4
  • MPN: PT-WPH-120-3CP-4

Quick Overview

Selectable half cut-off LED wall pack for exterior security lighting with 80W/100W/120W power settings, 3000K/4000K/5000K CCT, 100-277V input, 0-10V dimming, IP65 wet rating, and integrated photocell.

UL Listed
DLC Standard
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left: 178
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Portor PT-WPH-3CP-4 Series is a rugged half cut-off wall pack built for dependable outdoor perimeter lighting. Designed as a flexible solution in Portor’s commercial exterior lineup, it combines field-selectable wattage and CCT in one durable fixture for easier project standardization.

Key Features and Benefits

  • 3-step wattage selectability (80W/100W/120W) helps match light levels while reducing overlighting and energy use.
  • 3-CCT selectability (3000K/4000K/5000K) allows on-site tuning for warm, neutral, or crisp white illumination.
  • Integrated photocell supports automatic dusk-to-dawn operation for convenience and energy savings.
  • Die-cast aluminum housing with powder-coated finish and borosilicate glass lens delivers long-term durability in outdoor environments.
  • 0-10V dimming compatibility supports advanced lighting controls and retrofit flexibility.
  • Backed by a 5-year limited warranty and listed to UL, FCC, and DLC standards for commercial confidence.

Specifications

  • Voltage: 100-277V
  • Frequency: 50/60Hz
  • CRI: 70
  • Power Factor: >0.9
  • THD: ≤20%
  • IP Rating: IP65
  • Operating Temperature: -40°F to 113°F
  • Delivered Lumens: 11020-17495
  • Efficacy: 128-159 lm/W
  • Rated Life (L70): 50000 hours
  • Dimensions: 14.21" x 9.27" x 6.92"
  • Net Weight: 8.86 lbs

Common Uses

Ideal for warehouses, walkways, building entrances, parking areas, retail exteriors, and shopping mall perimeters where reliable wet-location wall-mounted illumination is required.
