Description

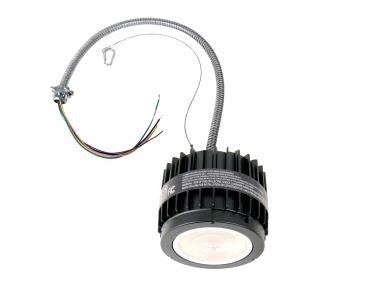

Introducing the Recessed Architectural Downlight (RAD) series, a modular system designed to upgrade traditional downlights to advanced LED technology. This light engine offers selectable wattage and color temperature, ensuring optimal lighting customization.

Key Features and Benefits

12v aux for c-Max compatibility
Wattage and CCT select Light Engines with Adjustable Beam Angles
Multi-Mode dimming supporting Triac / ELV (at 120v) and 0-10V dimming (at 120-277V)
Field Installable Emergency Battery Back Up Available
Energy Star V1.0 qualified

Specifications

Selectable Wattage: 12/16/20W
Selectable CCT: 2700K/3000K/3500K/4000K/5000K
CRI: ≥ 90
L70 Lifetime: ≥ 50,000 hours
Voltage: 120-277V
Power Factor: ≥ 0.9
ETL Listed & Classified
Environment: Damp locations
Warranty: 5 years

Common Uses

Ideal for retrofitting or new construction in architectural settings where energy efficiency and superior lighting quality are paramount.

RESOURCES AND DOWNLOADS

Recessed Architectural Downlight Light Engine Spec Sheet

Details

Color Rendering Index (CRI):	≥90
Color Temperature (CCT):	2700K\|3000K\|3500K\|4000K\|5000K
Lumen Output:	1150lm\|1500lm\|1800lm
Special Features:	Color Temperature Selectable\|Power Selectable
Total Input Watts:	12W\|16W\|20W
Voltage:	120-277V
