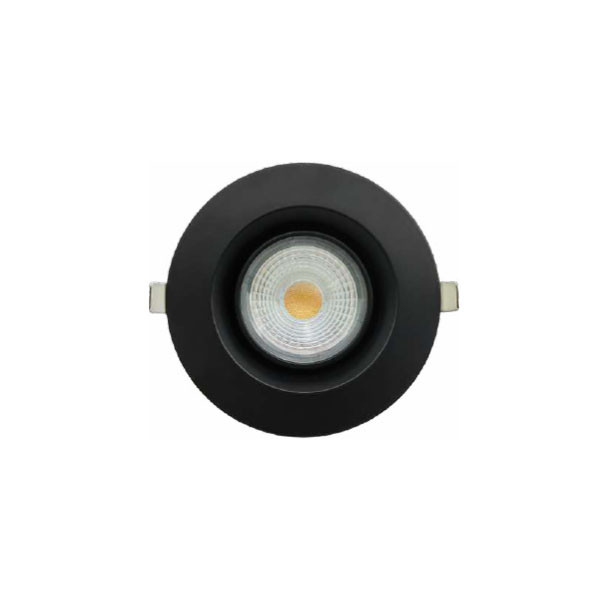

RG Series 6" Regress Gimbal, 22W, 2200 lumens, 120/277V, 5CCT, Black, 60° beam

By Lum-Tech Lighting
RG Series 6" Regress Gimbal, 22W, 2200 lumens, 120/277V, 5CCT, Black, 60° beam
RG Series 6" Regress Gimbal, 22W, 2200 lumens, 120/277V, 5CCT, Black, 60° beam
RG Series 6" Regress Gimbal, 22W, 2200 lumens, 120/277V, 5CCT, Black, 60° beam
RG Series 6" Regress Gimbal, 22W, 2200 lumens, 120/277V, 5CCT, Black, 60° beam

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

RG Series 6" Regress Gimbal, 22W, 2200 lumens, 120/277V, 5CCT, Black, 60° beam

$157.55
  • SKU: LT-LTG-20095
  • MPN: LTG-20095

Quick Overview

6" recessed regress gimbal downlight in black finish with 22W output, 2200 lumens, 5CCT selectable color, 120/277V input, and Triac or 0-10V dimming for flexible commercial and residential lighting.

ETL Listed
Title 24 Compliant
JA8 Compliant
WET RATED
IC RATED
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lum-Tech RG Series 6" Regress Gimbal is a versatile recessed downlight designed for modern spaces that need directional accent and general illumination. As part of Lum-Tech’s multi-CCT architectural lineup, it combines high output, selectable color temperature, and clean recessed styling for broad project compatibility.

Key Features and Benefits

  • Selectable 5CCT tuning lets you match the space from warm to daylight tones with one fixture.
  • Regressed gimbal design helps reduce glare while allowing aimed light where it is needed most.
  • Supports Triac and 0-10V dimming with smooth dim-down performance to 5%.
  • Built for demanding installs with IC rating, wet location suitability, and airtight construction.
  • High color quality with 90+ CRI improves visual comfort and material appearance.
  • Certified for code-driven projects with JA8 Title 24 compliance plus ETL and FCC listings.

Specifications

  • Lumen Output: 2200
  • Wattage: 22W
  • Voltage: 120/277V
  • CRI: 90
  • Beam Angle: 60°
  • Color Temperature: 2700K|3000K|3500K|4100K|5000K
  • Cut Out: 6.00"
  • Fixture Diameter: 7.16"
  • Fixture Height: 4.72"
  • Finish / Color: Black

Common Uses

Ideal for residential living areas, hospitality spaces, corridors, retail environments, and light commercial interiors where adjustable recessed lighting, wet-location capability, and selectable CCT are required.

RESOURCES AND DOWNLOADS

RG Series 6" Regress Gimbal Spec Sheet
