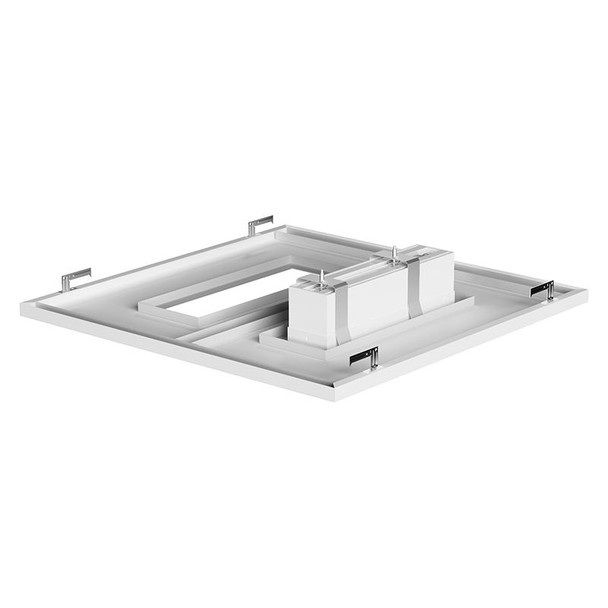

SCX Series 2x2 Architectural Drop in T-Bar Light, 20W, Multi Color Temperature, Dimmable

By Westgate Manufacturing
SCX Series 2x2 LED Superior Architectural Light, 20W, Multi Color Temperature, Dimmable, Drop-In
SCX Series 2x2 LED Superior Architectural Light, 20W, Multi Color Temperature, Dimmable, Drop-In
Westgate MFG | Architectural Drop In T-Bar Lights | SCX-DIP Series
SCX Series 2x2 LED Superior Architectural Light, 20W, Multi Color Temperature, Dimmable, Drop-In
SCX Series 2x2 LED Superior Architectural Light, 20W, Multi Color Temperature, Dimmable, Drop-In

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

SCX Series 2x2 Architectural Drop in T-Bar Light, 20W, Multi Color Temperature, Dimmable

$314.15
MSRP: $349.78
You save $ 35.63 (10%)
  • SKU: WM-SCX-2X2-20W-MCT4-D-DIP
  • UPC: 840378302036
  • MPN: SCX-2X2-20W-MCT4-D-DIP

Quick Overview

SCX Series 2x2 Architectural Drop in T-Bar Light, 20W, Multi Color Temperature, Dimmable (wattage: 20W; lumens: 2200; efficacy: 110LM/W; CCT: 30K/35K/40K/50K; voltage: 120-277V)

IP54
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 3
Free shipping on this item
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Superior Lighting for Offices and More

The SCX Series 2x2 LED light is designed with versatility in mind, offering a 20W power output with selectable color temperatures ranging from 3000K to 5000K. Its adjustable lumen output of 2200LM makes it ideal for various settings like offices, hotels, and conference rooms. This energy-efficient lighting solution ensures optimal illumination while consuming minimal power.

Key Features and Benefits

  • Multi-Color Temperature selectable switch inside the fixture for customizable lighting
  • High lumen output with low wattage consumption
  • 0~10V dimming capability for flexible lighting control
  • Opal polycarbonate lens for even light distribution
  • Durable aluminum housing with a sleek matte white finish
  • IP54 rated, designed to withstand dust and water
  • Operates efficiently in a wide temperature range: -13°F to 104°F
  • Comes with a 5-year warranty ensuring long-term reliability
  • Built to last with a 50,000 hours rated life

Specifications

  • Voltage: 120-277VAC, 50/60Hz
  • Wattage: 20W
  • Power Factor: >0.95
  • Total Lumens: 2200LM
  • Color Temperatures: 3000K / 3500K / 4000K / 5000K
  • CRI: ≥80
  • Beam Angle: 104.8° (H) x 100.5° (V)
  • Dimensions: 23 3/4"(L) x 23 3/4"(W) x 4/5"(D)

Common Uses

The SCX Series 2x2 LED light is perfect for a variety of indoor applications such as offices, hotels, corridors, salons, libraries, meeting rooms, and conference halls. Its modern design and superior illumination make it a top choice for enhancing any indoor space.

Resources and Downloads

SCX Series 2x2 LED Superior Architectural Light Spec Sheet
