SFX Series 800W RGB LED Stadium Flood Light With 45° Beam

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

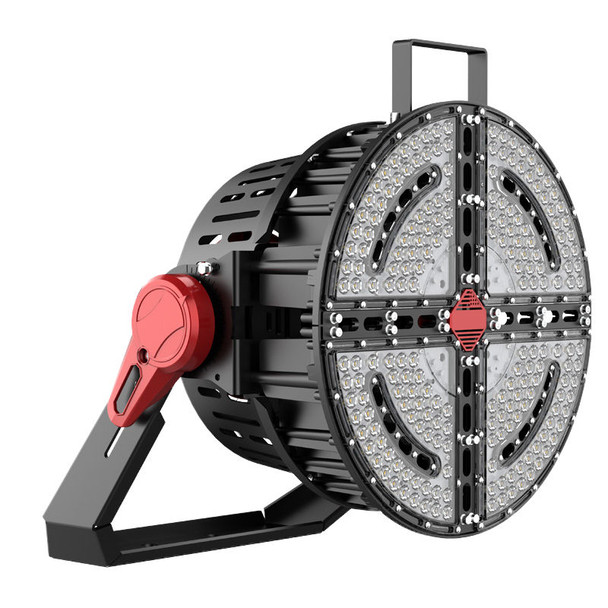

SFX Series 800W RGB LED Stadium Flood Light With 45° Beam

$6,995.55
MSRP: $7,776.78
You save $ 781.23 (10%)
  • SKU: WM-SFX-G9-800W-45D-RGB
  • UPC: 845060017618

Quick Overview

RGB LED stadium flood light for sports fields, parking lots, docks, railway yards, and exterior commercial or industrial lighting; 120,000 lumens, 150 lm/W, 45° beam, IP66 wet-location rated.

UL Listed
WET RATED
DAMP RATED
WARRANTY 7 YEARS
IP66
Availability: 1 business day
Out of stock
Current Stock:Only left:
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The SFX Series 800W RGB LED stadium flood light is designed for powerful, colorful illumination across large outdoor areas. Its high-output LED platform, focused 45° beam, and DMX-compatible connectivity make it a versatile option for demanding sports and architectural lighting projects.

Key Features and Benefits

  • Produces 120,000 lumens of RGB light for high-impact, large-area illumination.
  • A 45° beam concentrates light where it is needed for stadiums and other expansive spaces.
  • DMX setups support daisy-chained connections between fixtures, helping simplify system wiring.
  • Die-cast aluminum housing with a black powder-coat finish is paired with a prismatic polycarbonate lens.
  • IP66-rated construction is suitable for wet locations and outdoor installation.
  • UL listed and backed by a 7-year warranty.
  • Optional shroud and slip fitter accessories are available.

Specifications

  • Wattage: 800W per performance table; electrical section also lists 600W
  • Voltage: 120–277V AC, 60Hz
  • Power factor: >0.90–0.97
  • Efficacy: 150 LPW
  • Total lumens: 120,000 lm
  • Color temperature: RGB
  • Color rendering index: CRI ≥ 70
  • Rated life: 70,000 hours
  • Beam angle: 45°
  • BUG rating: B5-U0-G2
  • LED: Philips Lumileds Luxeon SMD 3535
  • Lens: Prismatic polycarbonate
  • Housing: Die-cast aluminum with black powder-coat finish
  • Cord: 3 ft SJTW 18/3 AWG cable
  • DMX connection: Fixtures can be connected by cable in a daisy-chain setup
  • Effective projected area: 1.8 sq. ft.
  • Operating temperature: -40°F to 122°F
  • Ingress protection: IP66, suitable for wet locations
  • Dimensions: 23 1/3 in. H × 21 4/5 in. W × 18 1/3 in. D

Common Uses

Suitable for stadiums, sports fields, parking lots, docks, railway and container yards, architectural lighting, industrial and commercial exterior lighting, trade shows, and exhibitions.
