Signature Maximum-Feature Round-Back Flood Light, U Bracket, Full Control Beam Angle, CCT, Watts, Photocell, Bronze

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

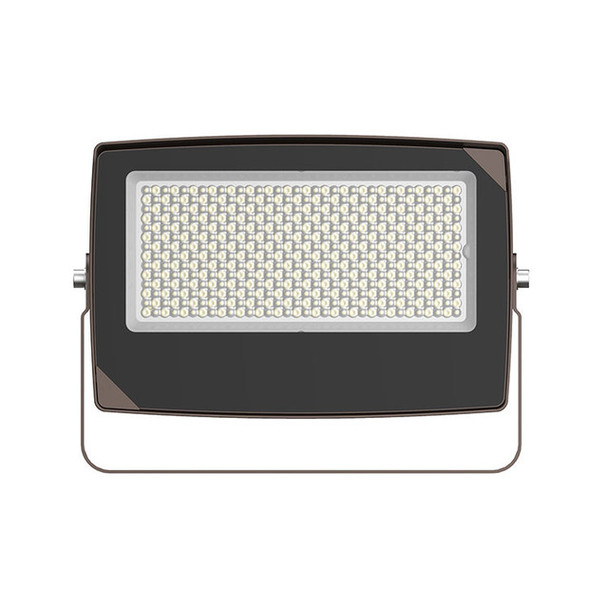

Signature Maximum-Feature Round-Back Flood Light, U Bracket, Full Control Beam Angle, CCT, Watts, Photocell, Bronze

$202.70
MSRP: $225.78
You save $ 23.08 (10%)
  • SKU: WM-LF4MAX-LG-75-150W-MCTPB-TR-P
  • MPN: LF4MAX-LG-75-150W-MCTPB-TR-P

Quick Overview

Signature Maximum-Feature Round-Back Flood Light, U Bracket, Full Control Beam Angle, CCT, Watts, Photocell, Bronze (wattage: 75W/100W/150W; lumens: 21000; efficacy: 140LM/W; CCT: 30K/40K/50K; voltage: AC120-277V)

UL Listed
DLC Premium
WARRANTY 7 YEARS
IP65
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 8
Free shipping on this item
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Westgate LF4MAX Series is a maximum-feature round-back flood light designed for flexible outdoor illumination across commercial and industrial sites. This LG-size model combines selectable wattage, selectable CCT, and beam control in one fixture, making it a versatile choice in Westgate’s flood lighting lineup.

Key Features and Benefits

  • Field-selectable output with 75W, 100W, or 150W settings to match changing lighting needs.
  • Selectable 3000K/4000K/5000K color temperatures for warm to crisp white light tuning.
  • Integrated photocell with disconnect switch helps automate dusk-to-dawn operation and energy savings.
  • Multiple beam patterns and 270° adjustable yoke support precise aiming and coverage control.
  • Built for demanding outdoor use with IP65 protection and wet-location suitability.
  • Backed by a 7-year warranty and certified to cULus, DLC Premium, and LM-79 standards.

Specifications

  • Lumen Output: 10500|14000|21000
  • Voltage: 120-277V, 50/60Hz
  • Efficacy: 140 lm/W
  • CRI: 70+
  • Power Factor: >0.9
  • Beam Angle: 135°x125°|120°x120°|90°x90°
  • Rated Life: 70000 hours
  • Operating Temperature: -40°F to 104°F
  • Housing: Die-cast aluminum with powder coat finish
  • Cord: 6' SJTW 18/3 AWG
  • BUG Rating: B4-U0-G1
  • Dimensions: 13.62"(W) x 9.36"(H) x 5.57"(D)

Common Uses

Ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, and HID flood/wall pack replacement projects requiring flexible output and aiming.
