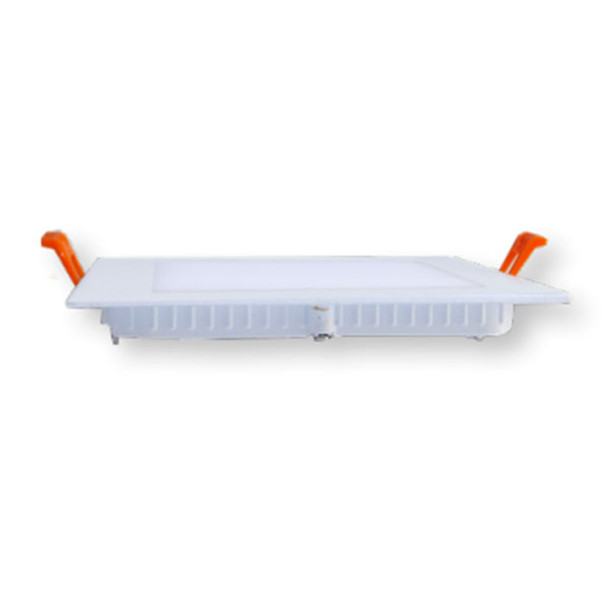

SSL series LED ultra slim recessed ligths, 15 watts, 1,125 lumens, available in 2700K/ 3000K/ 3500K/ 4000K/ 5000K CCT adjustable color temperature, up to 50,000 hours rated life, suitable for damp locations, 5 years limited warranty.
FEATURES
- 6” Smooth Recessed Trim
- Multi CCT (Selectable Switch on the Back of the driver )
- Isolated Driver for Improved Thermal Management
- 5-Year Warranty
- Spun Aluminum with White Powder Coat Finish
ELECTRICAL
- Voltage: 120V AC
- Output Voltage: 36VDC
- Power Factor: >0.90
- Wattage: 15W
- Efficacy: 70 LPW
- Total Harmonic Distortion: ≤15 %
MECHANICAL
- 1/4”Thick
- Die-cast Aluminum with white powder coat finish
- Pot Light Housing is Not Required Even for Insulated Ceiling
- Junction box 1” Thick Included with Fixture
- TypeI Crated: Approved for direct contact with insulation
- Maximum Ambient Temperature: -40°F to 104°F
- Damp Location
- 5-Year Warranty
LIGHTING
- Dimming: Dimmable
- Lens: 0.125” White Translucent Acrylic
- Can Rotate after Installation to Align
- LED: Seoul DOB (Driver On Board) Technology
- Optics: White Translucent Acrylic
- Total Lumens: 1125LM
- Color Temperatures: 2700K/ 3000K/ 3500K/ 4000K/5000K
- Multi CCT (Selectable Switch on the Back of the driver)
- Color Rendering Index: CRI ≥ 80
- Beam Angle: 100°-110°
- Rated life: 50,000 hrs
APPLICATIONS
- LED retrofit trim have been designed to be a flexible lighting solution for retrofit and new construction applications, Ideal for closets,storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
RESOURCES AND DOWNLOADS
| SKU | WM-SSL6-MCT5 |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 120V AC |
| Lumen Output | 1125lm |
| Color Rendering Index (CRI) | ≥80 |
| L70 Expected Life (hours) | 50,000hrs. |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 15W |
