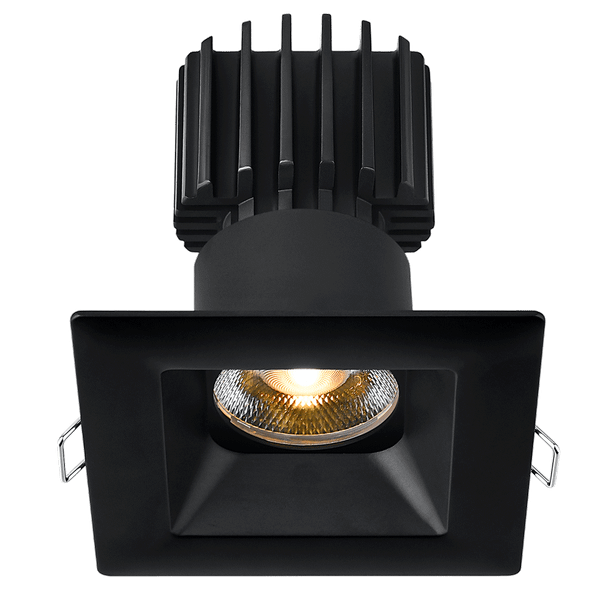

Name: Tangra 3" Fixed Square Recessed Wide Trim, DTW3000K-1800K, CRI95 LED
Brand: Lotus LED Lights
SKU: LLL-L3F-SRW-1895
Price: 125.85 USD
Availability: InStock

Description

Details

Delivery & Returns

Description

The Lotus LED Lights Tangra L3F-SRW is a premium 3" fixed square recessed wide trim engineered for architectural ambient and general lighting with reduced glare. Built in Canada with a solid cast aluminum body and advanced optics, this fixture is part of Lotus’ modular Tangra lineup designed for high-end performance and flexible configuration.

Key Features and Benefits

Dim-to-warm LED option delivers a warm, hospitality-style transition from 3000K down to 1800K with high 95 CRI color quality.
Modular platform supports multiple beam spreads and optic styles to fine-tune visual comfort and accent control.
Certified for demanding installs with cETLus, FCC compliance, Type IC, Air Tight, Open Plenum, and Wet Location IP54 construction.
Backed by Lotus’ long-term warranty coverage for as long as the line is manufactured plus 5 years.
Selectable 11W/15W driver compatibility enables output flexibility up to 1600 lumens.

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W (driver selectable)
Voltage: 120-347V AC (driver dependent)
Beam Angle: 20°|24°|36°|50°|60°
Fixture Input: 20-40V DC, max 350mA constant current
Min Dimming: 3% reverse phase cut / 4% forward phase cut
Cutout: 2 5/8" square
Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
Rated Life: 70% light output at 50,000 hours

Common Uses

Ideal for residential and commercial interiors requiring compact, high-quality recessed lighting, including living spaces, hospitality areas, corridors, and premium retail environments where glare control and warm dimming are important.

RESOURCES AND DOWNLOADS

Tangra 3" Fixed Square Recessed Wide Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CCT Range:	3000K-1800K
CRI:	95
Certifications:	ETL Listed, FCC
Color Temperature:	3000K\|1800K\|3000K-1800K
Dimming Type:	0-10V\|Phase
Distribution Type:	Direct
Efficacy (lm/W):	145
Finish / Color:	White\|Alzak\|White-Black Duo\|Black\|Oil Rubbed Bronze
Form Factor:	Square
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable\|Color Temperature Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
