Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT, CRI95

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

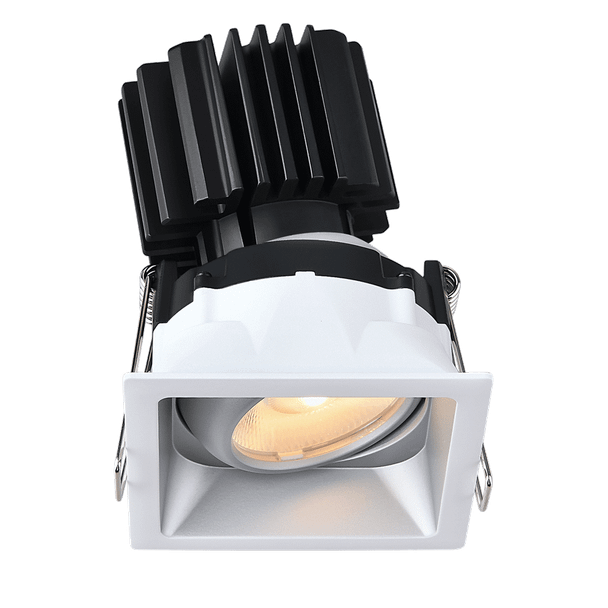

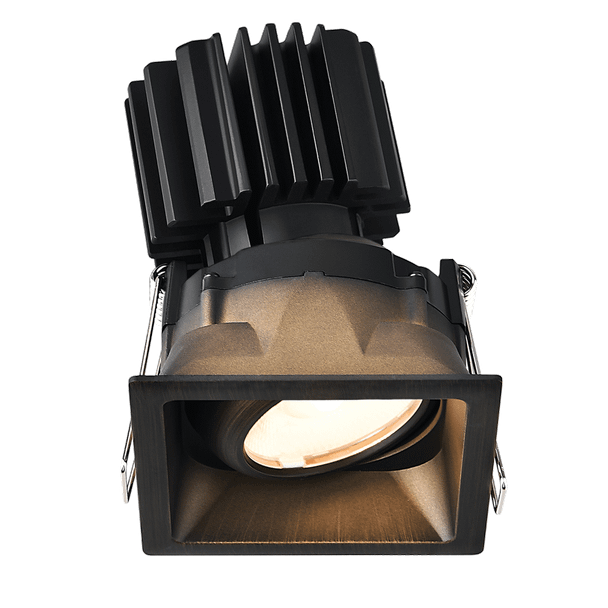

Tangra 3" Gimbal Square Recessed Thin Trim, 5CCT, CRI95

$136.60
  • SKU: LLL-L3G-SRT-5C95
  • MPN: L3G-SRT-5C95

Quick Overview

3" gimbal square recessed downlight with thin trim, selectable 11W/15W power, up to 1600 lm, 5CCT tuning (2700K-5000K), CRI95, and 20° beam for task lighting, sloped ceilings, and wall washing.

IP54
  • Lotus LED Lights Triac Dimmable Driver for Tangra fixtures 11W/15W user selectable 120V with Residential connectors
  • Lotus LED Lights Triac Dimmable driver for Tangra fixtures 11W/15W user selectable 120V, Commercial connectors
  • Lotus LED Lights Tangra 0-10V Dimmable Driver, 11W/15W Selectable, 120V-347V, Residential Connectors
  • Tangra 0-10V Dimmable Driver for Tangra fixtures 11W/15W user selectable, 120V-347V, Commercial Connectors
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus LED Lights Tangra L3G-SRT is a premium 3" gimbal square recessed thin-trim fixture engineered for high-performance architectural lighting. Built with a solid cast aluminum body and advanced optics, this modular series offers exceptional flexibility for residential and commercial applications. Its adjustable aiming and multiple LED/beam configurations make it a standout option in the Tangra lineup.

Key Features and Benefits

  • Precision aiming with 20° tilt and 360° rotation for focused task lighting and wall washing
  • User-selectable 11W/15W output to balance brightness and energy use per project needs
  • Ultra-high color quality options up to CRI98 for accurate, vibrant color rendering
  • Supports Triac or 0-10V dimming driver platforms for broad control compatibility
  • Certified cETLus and FCC compliant with Type IC, airtight, open plenum, and wet location suitability
  • Backed by Lotus lifetime line support plus 5-year warranty coverage

Specifications

  • Lumen Output: up to 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 95
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Beam Angle: 20°|24°|36°|50°|60°
  • Input: 20-40V DC, max 350mA constant current
  • Max Ambient Temperature: -40°C to +45°C
  • Rated Life (L70): 50000 hours
  • IP Rating: IP54
  • Cutout: 2 5/8" square; driver clearance above ceiling: 4"

Common Uses

Ideal for task lighting in kitchens and workspaces, accent lighting in residential and hospitality interiors, sloped ceilings up to 20°, and directional wall-wash applications in both new construction and retrofit projects.
