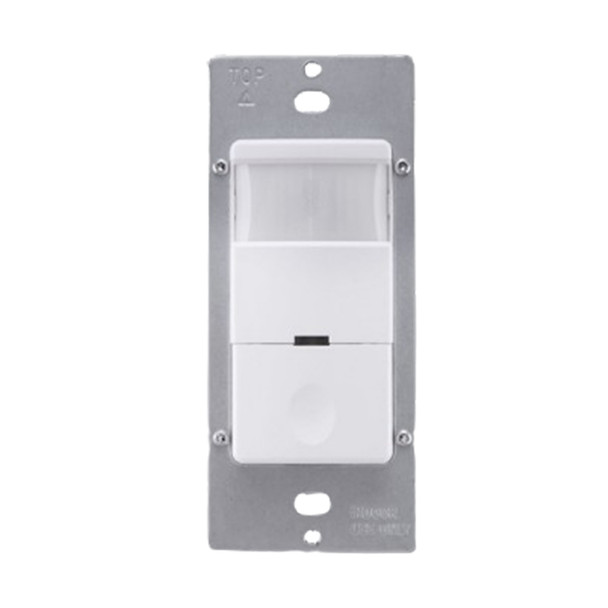

TEELIO AC 1 Button PIR Sensor Wall Switch, Bluetooth 5.0, 120-277V, White, IP20

By Portor Industry

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

TEELIO AC 1 Button PIR Sensor Wall Switch, Bluetooth 5.0, 120-277V, White, IP20

$124.40
  • SKU: PI-PT-1WS-MS-BT-A
  • MPN: PT-1WS-MS-BT-A

Quick Overview

Line-voltage Bluetooth wall switch with built-in PIR sensor for TEELIO-enabled lighting control. Supports 120-277V, 50/60Hz operation, app-based group linking, and retrofit installation with neutral wire.

UL Listed
JA8 Compliant
WARRANTY 5 YEARS
IP20
In Stock & Ready To Ship!
Current Stock:Only left: 4
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The TEELIO PT-1WS-MS-BT-A is a smart AC wall switch that combines manual push-button control with integrated PIR occupancy sensing for Bluetooth-enabled lighting systems. As part of the TEELIO control lineup, it offers a practical retrofit path for upgrading standard wall switches to wireless, app-connected control.

Key Features and Benefits

  • Built-in PIR sensor adds automatic occupancy-based ON/OFF control for improved energy savings.
  • Bluetooth 5.0 connectivity enables quick pairing and control of one or multiple lighting groups through the TEELIO app.
  • Designed for line-voltage retrofit applications, making upgrades from conventional wall switches straightforward (neutral required).
  • Reliable indoor construction with UL 94-V0 housing and IP20 protection for commercial and residential interior spaces.
  • Compliant with UL60730, UL1376, RoHS, and JA8-2022-E requirements, backed by a 5-year warranty.

Specifications

  • Input Voltage: AC 120-277V, 50/60Hz
  • Input Current: 10mA max
  • Bluetooth Transmit Range: 100' max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Operating Temperature: 32°F to 131°F
  • Storage Temperature: -22°F to 185°F
  • IP Rating: IP20
  • Color: White

Common Uses

Ideal for offices, corridors, classrooms, utility rooms, and other indoor areas where users need both local wall-switch operation and wireless group control of compatible Bluetooth lighting fixtures.
