TruBlu Mesh Single Channel Wireless Room Controller with Integral Relay, 120-277V, 0-10V, Bluetooth NLC Certified

By Halco Lighting Technologies

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

TruBlu Mesh Single Channel Wireless Room Controller with Integral Relay, 120-277V, 0-10V, Bluetooth NLC Certified

$147.10
  • SKU: HLT-PSC-WCM-450-BLE-SR
  • MPN: PSC-WCM-450-BLE-SR

Quick Overview

Bluetooth mesh single-channel room controller with integral 20A relay, 0-10V dimming output, and 120-277V input. Ideal for wireless lighting and plug load control in plenum-rated commercial spaces.

UL Listed
DLC Standard
IP20
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Halco TruBlu™ Mesh Single Channel Controller with Integral Relay is a wireless room control solution built for modern Bluetooth mesh lighting networks. As part of Halco’s TruBlu controls lineup, it combines line-voltage switching and 0-10V dimming in one compact device for streamlined commercial lighting control.

Key Features and Benefits

  • Bluetooth® NLC certified controller enables interoperable wireless control across qualified mesh systems.
  • Integrated 20A relay supports both lighting and plug load switching from a single control point.
  • Single-channel 0-10V dimming output delivers smooth continuous dimming with zoning and high-end trim capability.
  • 12VDC auxiliary output powers compatible sensors and control devices, reducing extra power hardware needs.
  • Plenum approved design and 1/2" threaded mounting simplify installation in fixtures or electrical enclosures.
  • Conforms to DLC NLC5 cybersecurity standards for secure connected lighting deployments.
  • Certified to cUL Listed, FCC, CE, and DLC Standard requirements for dependable commercial use.

Specifications

  • Voltage: 120-277V
  • Dimming Type: 0-10V
  • Relay Rating: 20A max (16A LED/CFL, 20A resistive)
  • 0-10V Output: 100mA current sinking
  • Input Consumption: 100mA
  • Auxiliary Output: 12VDC, 200-300mA (input dependent)
  • Sensor Input: 10-14VDC, 30mA (Active High)
  • Operating Temperature: -40°F to 104°F
  • Wireless Range: up to 100'
  • Mounting: 1/2" threaded male connector with mounting tabs

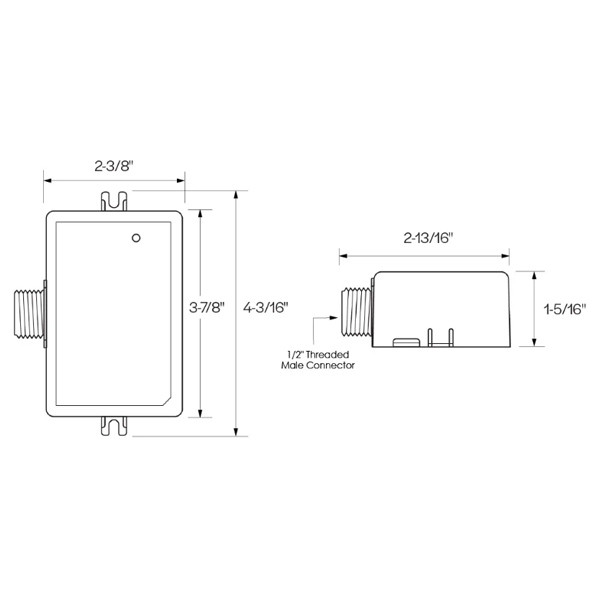

  • Dimensions: 2-3/8" x 4-3/16" x 2-13/16"

Common Uses

Ideal for offices, classrooms, retail spaces, and other commercial interiors requiring wireless room-based lighting control. Commonly used in plenum and fixture-integrated applications where dimming, relay switching, and sensor-ready control are needed.
