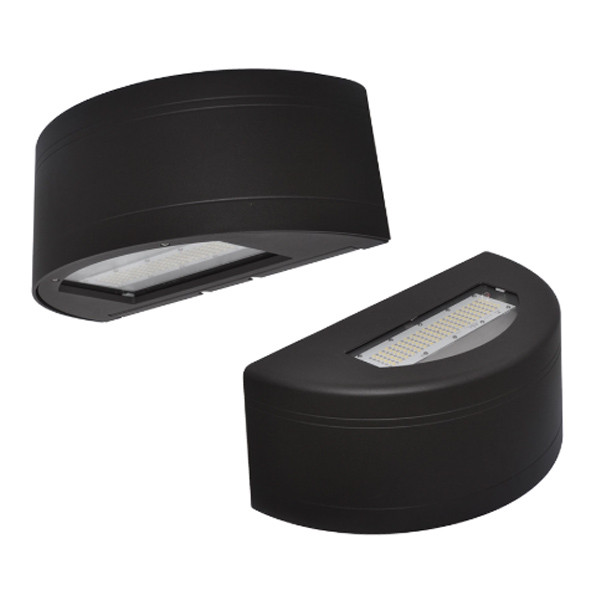

Unify Architectural Wall Mount, Half Round Up/Down, 4L/7L/10L Lumen Selectable, 120-277V, CCT Selectable, Bronze

By Industrial Lighting Products
Unify Architectural Wall Mount, Half Round Up/Down, 4L/7L/10L Lumen Selectable, 120-277V, CCT Selectable, Bronze

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Unify Architectural Wall Mount, Half Round Up/Down, 4L/7L/10L Lumen Selectable, 120-277V, CCT Selectable, Bronze

$429.35
  • SKU: ILP-UWRUD-4L/7L/10L-U-CCTS-BRZ
  • MPN: UWRUD-4L/7L/10L-U-CCTS-BRZ

Quick Overview

Architectural LED wall pack with selectable 4L/7L/10L output, 3000K/4000K/5000K CCT, up to 10,258 lumens, 0-10V dimming, and IP65 wet-location durability for exterior commercial applications.

UL Listed
Title 24 Compliant
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Unify Architectural Wall Mount (UWRUD series) is a modern exterior wall pack designed to deliver high-output performance with a refined architectural look. As part of ILP’s Unify lineup, it combines selectable lumen packages and CCT flexibility to simplify specification across varied commercial projects.

Key Features and Benefits

  • Selectable lumen output (4L/7L/10L) and selectable CCT (3000K/4000K/5000K) reduce SKU complexity and speed project deployment.
  • Balanced 50/50 up/down light distribution enhances façade visibility and architectural appeal while maintaining visual comfort.
  • Rugged die-cast aluminum housing with gasketed tempered glass lens supports long-term outdoor reliability in demanding environments.
  • 0-10V dimming capability and optional PIR bi-level controls support energy-saving lighting strategies.
  • Certified for confidence: UL Listed wet location, RoHS compliant, FCC Part A compliant, LM-79/LM-80 tested, and Title 24 compliant.
  • Backed by a 5-year limited warranty for dependable commercial operation.

Specifications

  • Lumen Output: 3767|3930|4003|6614|6902|7029|9686|10086|10258
  • Wattage: 25W|45W|65W
  • Voltage: 120-277V
  • Color Temperature: 3000K|4000K|5000K
  • CRI: 70
  • Efficacy: 123-160 lm/W
  • Dimming: 0-10V (to 10%)
  • Frequency: 50/60 Hz
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Rated Life: 60000 hours L70 (calculated 100000 hours)
  • Ingress Protection: IP65
  • Construction: Die-cast aluminum housing with tempered glass lens
  • Finish: Bronze

Common Uses

Ideal for exterior wall lighting at building entrances, pedestrian walkways, retail centers, parking areas, multifamily properties, schools, offices, industrial facilities, and storage sites.

RESOURCES AND DOWNLOADS

Unify Architectural Wall Mount Spec Sheet
