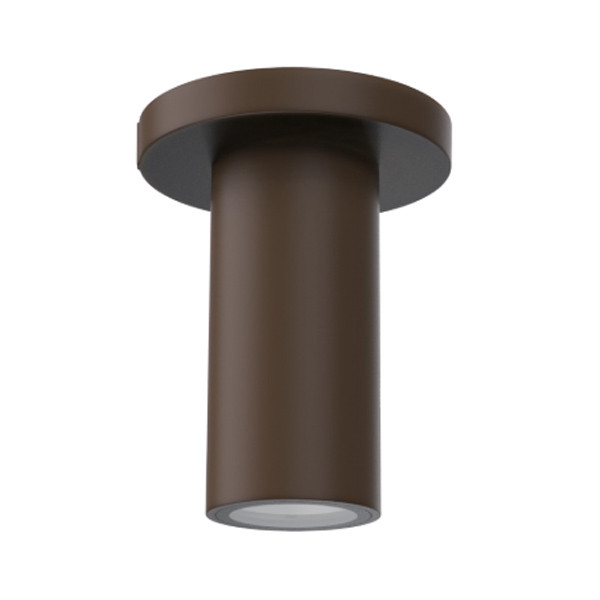

Unify Outdoor Cylinder 4" Down, 14L/18L/21L Selectable Lumens, 120-277V, 3000K/3500K/4000K Selectable CCT, Wide Flood 60°, Surface Mount, Bronze

By Industrial Lighting Products
Unify Outdoor Cylinder 4" Down, 14L/18L/21L Selectable Lumens, 120-277V, 3000K/3500K/4000K Selectable CCT, Wide Flood 60°, Surface Mount, Bronze

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Unify Outdoor Cylinder 4" Down, 14L/18L/21L Selectable Lumens, 120-277V, 3000K/3500K/4000K Selectable CCT, Wide Flood 60°, Surface Mount, Bronze

$249.30
  • SKU: ILP-UC4D-14L/18L/21L-U-CCTS-W-SM-BRZ
  • MPN: UC4D-14L/18L/21L-U-CCTS-W-SM-BRZ

Quick Overview

4" surface-mount outdoor LED cylinder with selectable 1400/1800/2100 lumen packages, 3000K/3500K/4000K CCT tuning, 0-10V dimming, IP65 wet-location rating, and precision 60° wide flood distribution.

ETL Listed
Title 24 Compliant
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Unify UC4D series is a modern 4" outdoor surface-mount cylinder designed to deliver flexible, high-performance architectural lighting. Built for commercial exteriors and demanding environments, it combines selectable output and CCT tuning in one durable fixture. As part of ILP’s Unify lineup, it offers a streamlined solution for projects needing both visual appeal and reliable long-life operation.

Key Features and Benefits

  • Selectable lumen package (14L/18L/21L) allows on-site light level adjustment for varied applications.
  • Field-adjustable CCT options (3000K/3500K/4000K) simplify SKU selection and improve project flexibility.
  • Precision optical control with 60° wide flood beam supports targeted illumination with reduced glare.
  • Rugged die-cast aluminum construction with stainless-steel hardware enhances durability in outdoor conditions.
  • Integrated photocell with optional override supports automated dusk-to-dawn energy savings.
  • Certified ETL Listed for wet locations, RoHS compliant, FCC compliant, LM-79/LM-80 tested, and Title 24 compliant.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 1237/1633/2021 (3000K, wide flood) | 1307/1726/2136 (3500K, wide flood) | 1241/1639/2028 (4000K, wide flood)
  • Wattage: 12/16/20W
  • Voltage: 120-277V, 50/60Hz
  • Dimming: 0-10V dimming to 5%
  • CRI: 80 minimum
  • Beam Angle: 60° (wide flood)
  • Ingress Protection: IP65
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Rated Life: 60000 hours L70 (calculated L70 up to 135000 hours)
  • Housing: Die-cast aluminum; Lens: gasketed tempered glass

Common Uses

Ideal for retail storefronts, multifamily properties, hospitality sites, healthcare campuses, educational facilities, and general building exterior lighting where architectural style and dependable outdoor performance are required.

RESOURCES AND DOWNLOADS

Unify Outdoor Cylinder 4" Down Spec Sheet
