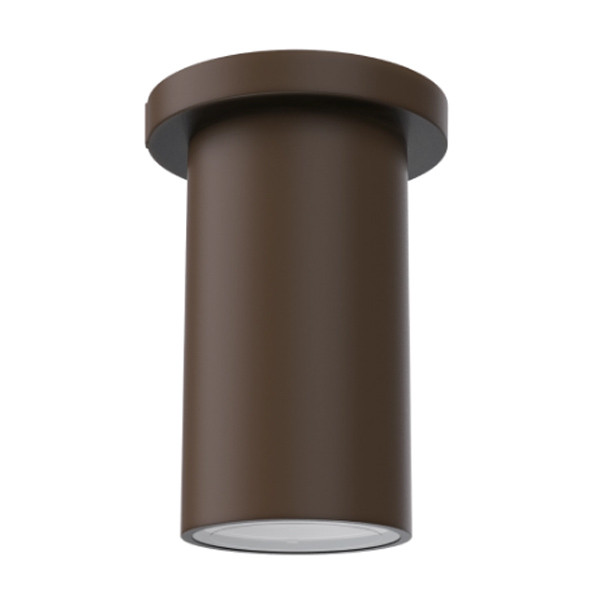

Unify Outdoor Cylinder, 6" Down, 2200/2600/3200 lm Selectable, 120-277V, 3000K/3500K/4000K Selectable, Wide Flood 60°, Surface Mount, Bronze

By Industrial Lighting Products
Unify Outdoor Cylinder, 6" Down, 2200/2600/3200 lm Selectable, 120-277V, 3000K/3500K/4000K Selectable, Wide Flood 60°, Surface Mount, Bronze

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Unify Outdoor Cylinder, 6" Down, 2200/2600/3200 lm Selectable, 120-277V, 3000K/3500K/4000K Selectable, Wide Flood 60°, Surface Mount, Bronze

$317.00
  • SKU: ILP-UC6D-22L/26L/32L-U-CCTS-W-SM-BRZ
  • MPN: UC6D-22L/26L/32L-U-CCTS-W-SM-BRZ

Quick Overview

6" surface-mount outdoor LED cylinder with selectable 2200/2600/3200 lumen packages, 3000K/3500K/4000K CCT, 60° wide flood optics, 0-10V dimming, and IP65 wet-location performance for exterior commercial lighting.

ETL Listed
Title 24 Compliant
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Unify UC6D surface-mount cylinder is a modern architectural outdoor fixture designed for dependable performance in demanding commercial environments. Built as part of ILP’s Unify lineup, it combines selectable output, selectable CCT, and precision optics to simplify specification while maintaining visual consistency across projects.

Key Features and Benefits

  • Selectable lumen package (22L/26L/32L) allows on-site light level tuning for greater design flexibility.
  • Field-adjustable CCT (3000K/3500K/4000K) supports warm-to-neutral appearance control from one SKU.
  • Precision 60° wide flood optic delivers controlled beam performance with reduced glare.
  • Rugged die-cast aluminum construction with stainless-steel hardware supports long-term outdoor durability.
  • ETL Listed for wet locations, RoHS compliant, FCC Part A compliant, LM-79/LM-80 tested, and Title 24 compliant for confidence in code-driven projects.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 1721/2273/2814 (3000K) | 1972/2603/3222 (3500K) | 1866/2463/3048 (4000K)
  • Wattage: 18W/24W/30W
  • Voltage: 120-277V, 50/60Hz
  • Dimming: 0-10V dimming to 5%
  • CRI: 80 minimum
  • Beam Angle: 60°
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Rated Life: 60000 hours L70 (calculated L70 up to 135000 hours)
  • Ingress Protection: IP65
  • BUG Rating: B2-U0-G0

Common Uses

Ideal for building exteriors, multifamily entries, hospitality sites, retail facades, healthcare campuses, and education facilities where durable, wet-location architectural downlighting is required.

RESOURCES AND DOWNLOADS

Unify Outdoor Cylinder Spec Sheet
