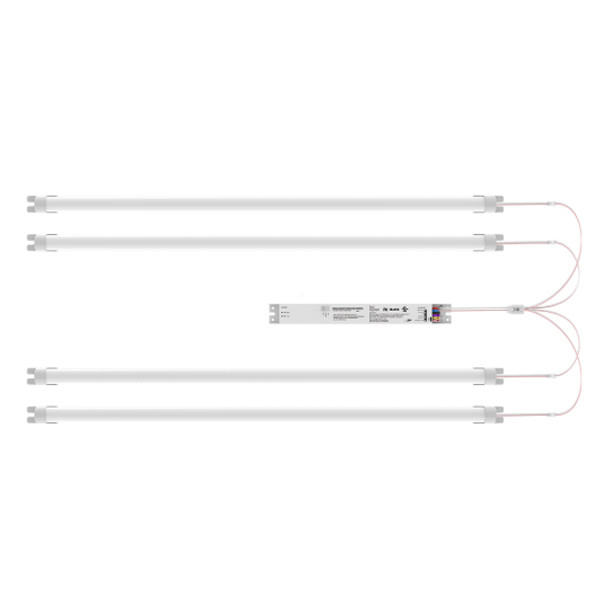

Universal Light Bar Kit, 2', 2000 lm package, 120-277V, 4000K, 4-bar kit

By Industrial Lighting Products
Universal Light Bar Kit, 2', 2000 lm package, 120-277V, 4000K, 4-bar kit

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Universal Light Bar Kit, 2', 2000 lm package, 120-277V, 4000K, 4-bar kit

$61.55
  • SKU: ILP-ULB2-20L-U-40-L4
  • MPN: ULB2-20L-U-40-L4

Quick Overview

2' LED retrofit light bar kit for upgrading fluorescent fixtures. Delivers 5200/5900/6500 lumens with selectable output, 32/36/40W, 0-10V dimming, 80 CRI, and damp-location suitability.

ETL Listed
DLC Standard
Title 24 Compliant
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Universal Light Bar Kit is a flexible LED retrofit solution designed to modernize existing fluorescent fixtures with faster installation and improved efficiency. As part of ILP’s ULB series, this 2' 4-bar configuration provides selectable lumen output and dependable performance for commercial and institutional spaces.

Key Features and Benefits

  • Retrofit-friendly design installs into many existing T8, T12, and T5/T5HO fixtures without reusing legacy sockets or ballasts.
  • Field-selectable lumen output supports easier light-level tuning for varied ceiling heights and tasks.
  • Integrated magnetic backing, quick connectors, and included harnesses help speed installation and alignment.
  • High efficacy performance up to 163 lm/W helps reduce energy use while maintaining strong illumination.
  • ETL Listed, DLC Standard qualified, FCC compliant, and Title 24 compliant with sensor option for broader project acceptance.
  • Backed by a 5-year standard warranty (10-year optional) for long-term confidence.

Specifications

  • Lumen Output: 5200|5900|6500
  • Wattage: 32W|36W|40W
  • Voltage: 120-277V
  • Color Temperature: 4000K
  • CRI: 80
  • Dimming Type: 0-10V (10%-100%)
  • Power Factor: 0.90
  • THD: 20
  • Rated Life (L70): 100000+
  • Max Ambient Temperature: 50°C (122°F)
  • Housing Material: Plastic
  • Lens Material: Frosted Polycarbonate
  • Damp Rated: true

Common Uses

Ideal for schools, healthcare facilities, offices, grocery and retail stores, storage areas, residential utility spaces, and stairwells where fluorescent-to-LED retrofit performance and fast installation are priorities.

RESOURCES AND DOWNLOADS

Universal Light Bar Kit Spec Sheet
