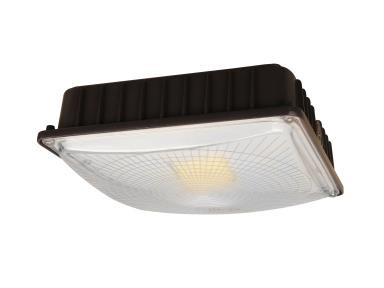

Economical 20W LED fixture with selectable color temperature and adjustable lumen outputs for parking garages and canopies.

Key Features and Benefits

• Die cast aluminum housing with corrosion resistant polyester powder coat finish
• Shatter resistant UL stabilized polycarbonate lens
• Integral 4kV Surge Protection + 10kA stand alone surge protection standard
• Canopy Lens
• Multifunctional Occupancy + Photocell Motion Sensor

Specifications

• Nominal Wattage: 20W
• Lumens Delivered: 3,100 lm (Canopy))
• Efficacy: 155 lm/W (Canopy)
• Color Temperature: 5000K
• Input Voltage: 120-277V AC
• CRI: ≥70
• Dimming: 0-10V dimming capability
• Lumen Maintenance (L70): 50,000 hours
• Housing: Die cast aluminum with corrosion resistant polyester powder coat
• Lens: Shatter resistant, UV stabilized polycarbonate
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• Weight: 5.5 lbs / 2.5 kg
• Listings: ULus, FCC, RoHS
• Environment: IP65
• Warranty: 5 Years

Common Uses

Ideal for parking garages and canopy lighting in commercial and industrial settings.
