VPAN Select Back-Lit Flat Panel, 34.0W

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

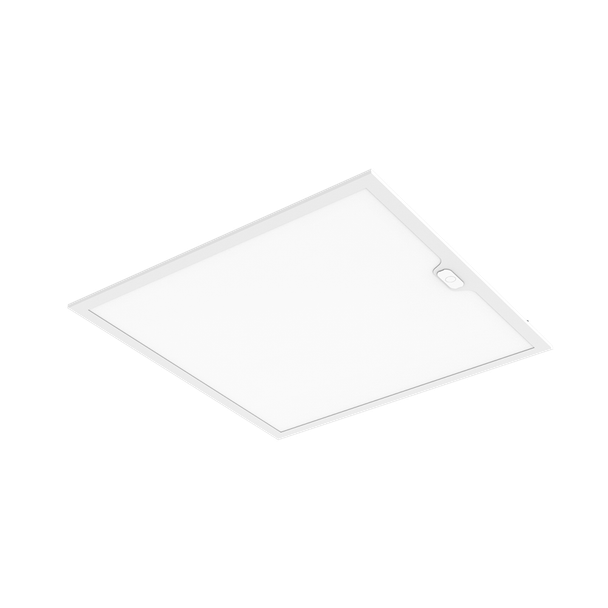

VPAN Select Back-Lit Flat Panel, 34.0W

$53.85
  • SKU: ILP-VPAN22-49L-U-CCTS-G2
  • MPN: VPAN22-49L-U-CCTS-G2

Quick Overview

ILP VPAN Select back-lit flat panel delivers uniform low-glare light with selectable lumen/CCT options, 0-10V dimming, 120-277V input, and Type IC damp-location rating for commercial recessed grid applications.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VPAN Select Back-Lit Flat Panel is a versatile architectural troffer solution designed for modern commercial interiors. As part of ILP’s configurable VPAN lineup, it combines high visual comfort, strong efficacy, and flexible field-selectable performance in a low-profile form factor.

Key Features and Benefits

  • Back-lit optical system with frosted PMMA lens and micro-optics helps deliver smooth, low-glare illumination across the space.
  • Field-selectable lumen and CCT capability supports easier project standardization and on-site tuning.
  • 0-10V dimming compatibility enables energy-saving control integration for offices, schools, healthcare, and retail environments.
  • Die-formed steel housing with post-paint finish provides durability and clean ceiling aesthetics.
  • ETL Listed for US/Canada, damp-location suitable, and Type IC rated for insulation contact.
  • Backed by a 5-year standard warranty, with optional 10-year coverage for extended peace of mind.

Specifications

  • Wattage: 34.0W
  • Input Voltage: 120-277V
  • Color Temperature Options: 2700K, 3000K, 3500K, 4000K, 5000K
  • CRI: >80
  • Dimming: 0-10V (10%-100%)
  • Power Factor: >0.90
  • Rated Life: L70 >100,000 hours
  • Efficacy: up to 161 lm/W (series maximum)
  • Ambient Operating Range: -4°F to 104°F
  • Mounting: Recessed grid (15/16" and 9/16" T-grid compatible), with optional flange/surface/suspended/skylight kits

Common Uses

Ideal for education facilities, healthcare spaces, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, and other indoor damp-location applications requiring efficient, uniform general lighting.
